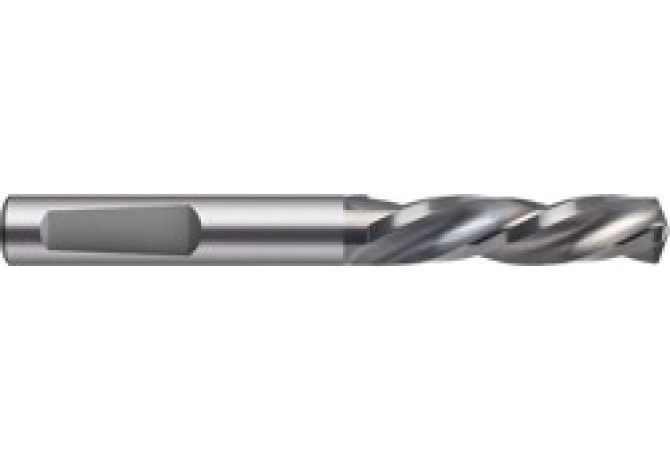

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill 1020 8.700

1020 8.700

Артикул: 1020 8.700

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

8.7 mm

DCONMSLD Shank diameter lower limit

-0.009 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL00870105

FamilyProducts

RATIOBOHRER

FHA Flute helix angle

28 Degree

FHH Flute helix hand

L - Hand of helix left

FHP Flute helix pitch

56 mm

GRDPRIO Standard designation of the grade main application

HF-K

GRDSYC Grind style code

GG-KG

HAND Cutting direction

L - Left

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

52 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0087

LOC-03 DCONMS Diameter

8.7 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00870105

LPR Protruding length

57 mm

LS Shank length

32 mm

LU Usable length

41 mm

Name Identifying order number

1020 8.700

NOF Flute count

OAL Overall length

84 mm

PL Point length

1.2 mm

SIG Point angle 1st step

150 Degree

STDNO Standard

DIN 6539

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.047 kg
