Главная Каталог продукции Toolunited 13 310-00 - Turning tool with carbide tips unspecified MINIR04-140050D040 TT9030

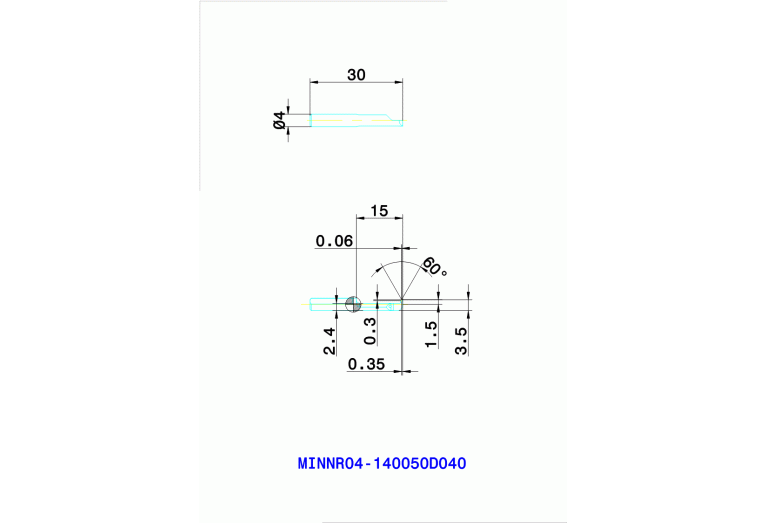

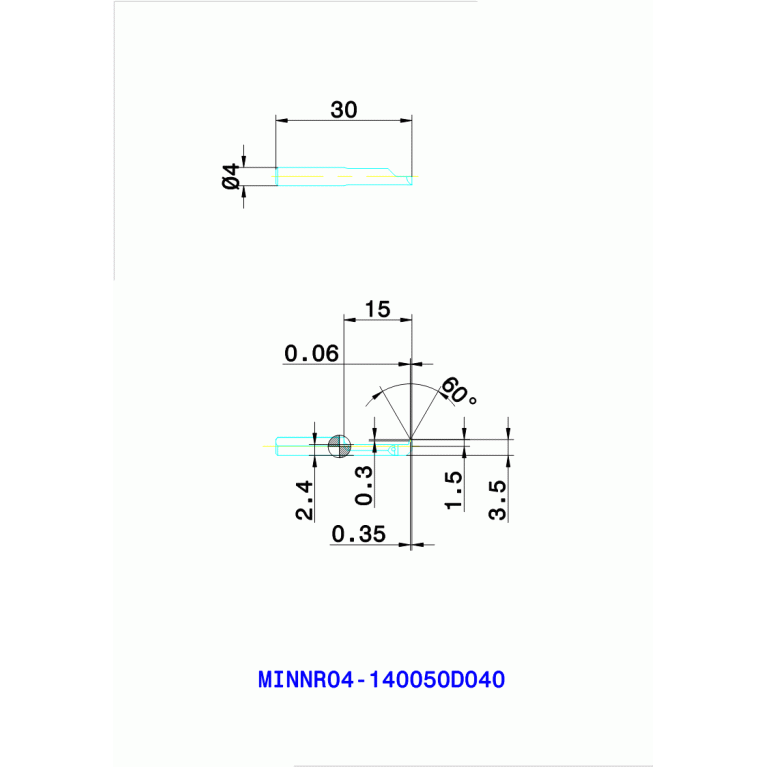

MINIR04-140050D040 TT9030

Артикул: 6861119

В наличии

В корзину

Описание

Характеристики

COMPC Company code

IL - Ingersoll

DCP Data chip provision

0 - Without data chip

Delivery state valid from

2/27/2024

DIN

IL-Tmicro-4mmIK

DMIN Minimum bore diameter

4 mm

FamilyProducts

MINN

GRDMFG Grade manufacturers designation

TT9030

HAND Cutting direction

R - Right

ID Technical product number

6861119

Interface codes

J6 /

ISYC Subclass

310-00 - Turning tool with carbide tips unspecified

L Cutting edge length

0.06 mm

LF Functional length

30 mm

LH Head length

15 mm

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 DCONMS Diameter

4 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

IL-Tmicro-4mmIK

Materials

P,M,N,S

Name Identifying order number

MINIR04-140050D040 TT9030

OAL Overall length

30 mm

TCDCONMS ISO-tolerance class shank diameter

WF Functional width

1.5 mm

Working process

No working processes available

WT Weight of item

0.004 kg
