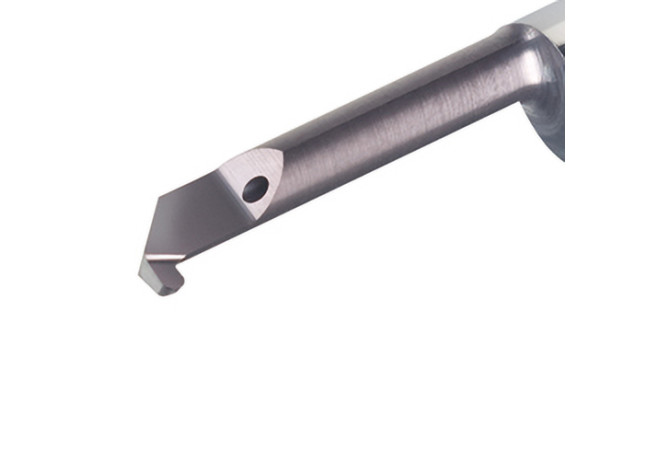

MINGR07-240150D060 TT9030
MINGR07-240150D060 TT9030
Артикул:
6861039
В наличии
Характеристики

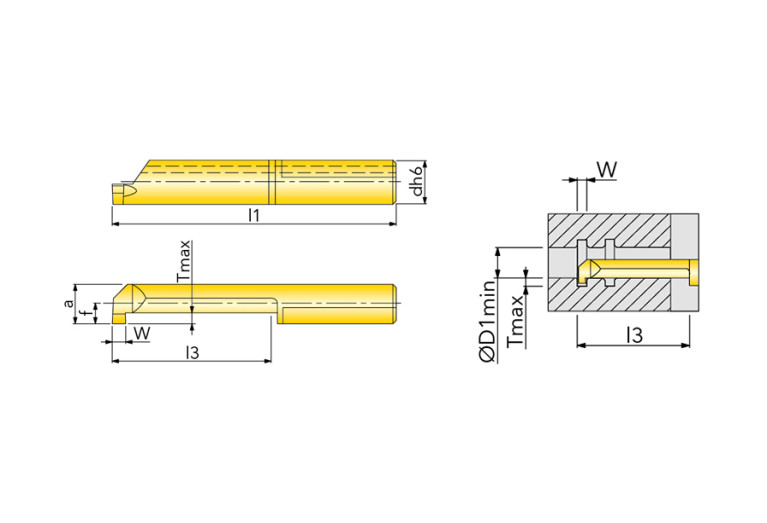

CDX Cutting depth maximum
1.8 mm
COMPC Company code
IL - Ingersoll
DCP Data chip provision
0 - Without data chip
Delivery state valid from
2/27/2024
DIN
IL-Tmicro-7mmIK
DMIN Minimum bore diameter
6 mm
FamilyProducts
MING
GRDMFG Grade manufacturers designation
TT9030
HAND Cutting direction
R - Right
ID Technical product number
6861039
Interface codes
J6 /
ISYC Subclass
310-00 - Turning tool with carbide tips unspecified
LF Functional length
40 mm
LH Head length
25 mm
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 DCONMS Diameter
7 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
IL-Tmicro-7mmIK
Materials
P,M,N,S
Name Identifying order number
MINGR07-240150D060 TT9030
OAL Overall length
40 mm
TCDCONMS ISO-tolerance class shank diameter
h6
WF Functional width
1.8 mm
Working process
No working processes available
WT Weight of item
0.013 kg
