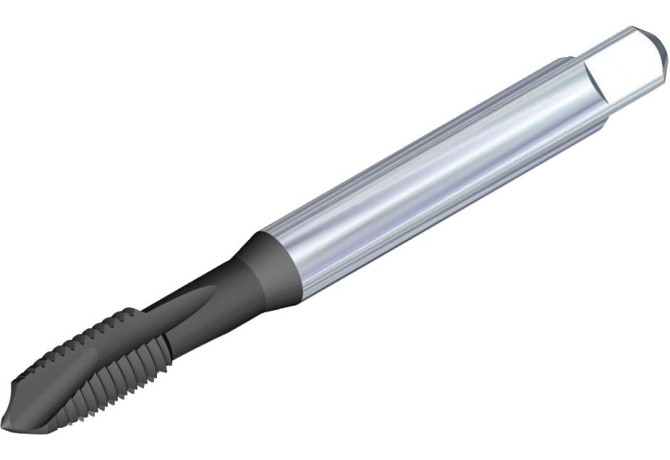

T820NC#08-32R3B-D1 KSP39

T820NC#08-32R3B-D1 KSP39 T820NC#08-32R3B-D1 KSP39

T820NC#08-32R3B-D1 KSP39

Kennametal
Артикул: 5479695
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
9/17/2015
DIN
ZYL00452115
FamilyProducts
T820, Form B Plug Chamfer, UNJC/UNJF
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
KSP39
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
5479695
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
21 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0045
LOC-03 DCONMS Diameter
4.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00452115
Materials
P,M,K
Name Identifying order number
T820NC#08-32R3B-D1 KSP39
NOF Flute count
2
OAL Overall length
63 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
DIN371
TCTR Thread tolerance class
3B
TDZ Thread diameter size
8
THFT Thread form type
UNC
THL Thread cutting part length
11 mm
THOD Thread designation
UNC8-32-3B
TPI Threads per inch
32 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
BG - Tapping
