Главная Каталог продукции Toolunited 13 301-02 - Thread cutting tap with reinforced shank T461NC3125-18R3B KC7512

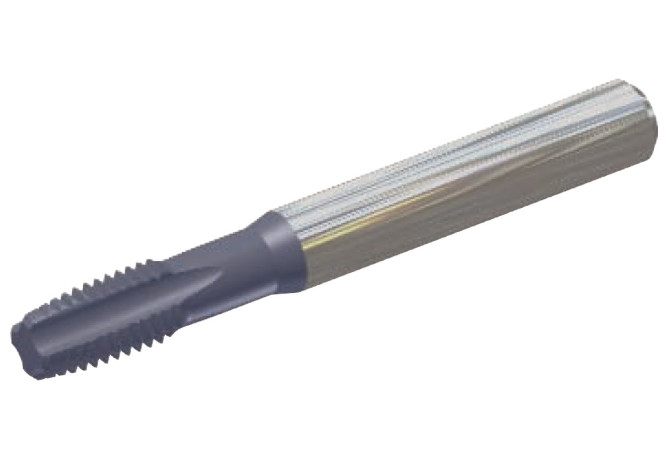

T461NC3125-18R3B KC7512

T461NC3125-18R3B KC7512 T461NC3125-18R3B KC7512 T461NC3125-18R3B KC7512

T461NC3125-18R3B KC7512

Kennametal
Артикул: 3527351
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
TiN+CrC/C
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
11/1/2008
DIN
ZYL03130135
FamilyProducts
T461-inch, Straight Flute, Plug Chamfer /w Coolant
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
KC7512
HAND Cutting direction
R - Right
ID Technical product number
3527351
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
32.004 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
0313
LOC-03 DCONMS Diameter
7.9375 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03130135

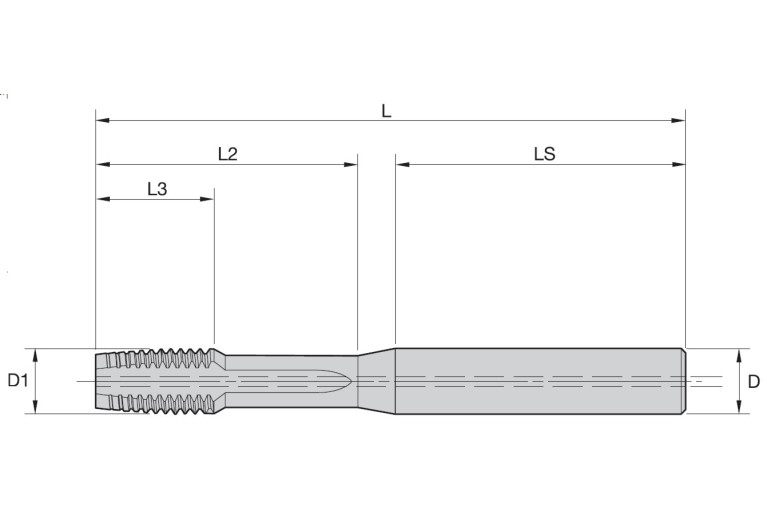

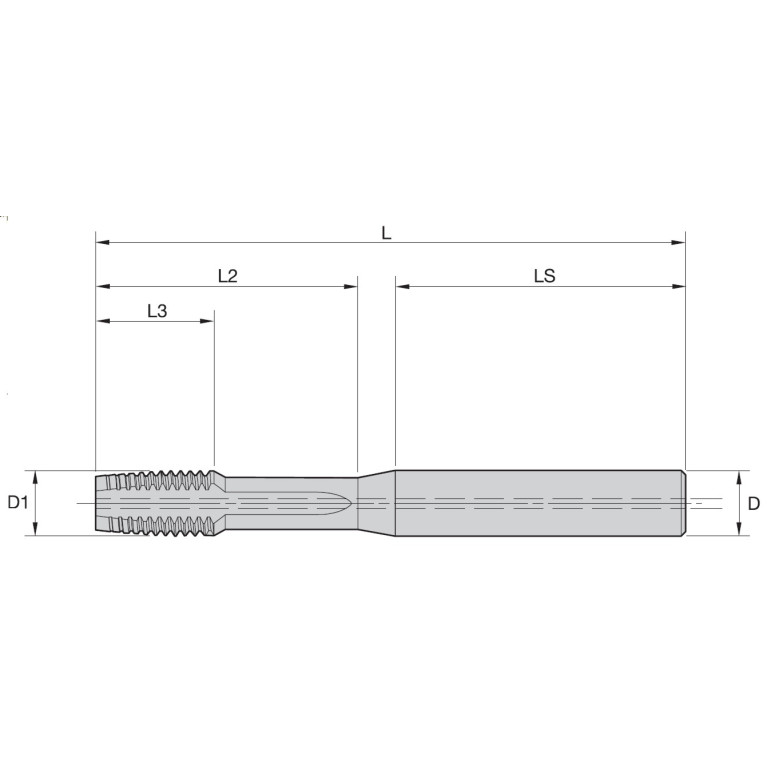

LS Shank length
42.9006 mm
Materials
N
Name Identifying order number
T461NC3125-18R3B KC7512
NOF Flute count
3
OAL Overall length
80.01 mm
TCDCONMS ISO-tolerance class shank diameter
h6
TCTR Thread tolerance class
3B
TDFR Thread diameter nominal fraction
5/16 in
THFT Thread form type
NC/UNC
THL Thread cutting part length
16.9926 mm
THOD Thread designation
NC/UNC5/16-18-3B
TPI Threads per inch
18 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
BG - Tapping
