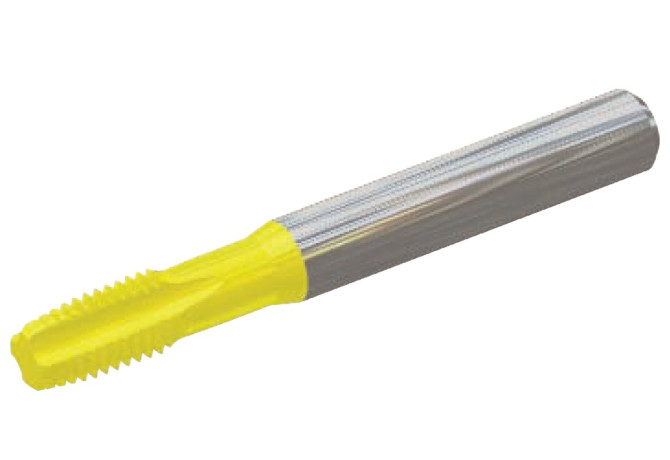

T340NF#10-32R3B KC7542

T340NF#10-32R3B KC7542 T340NF#10-32R3B KC7542 T340NF#10-32R3B KC7542

T340NF#10-32R3B KC7542

Kennametal
Артикул: 3483101
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TiAlN-TiN
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
11/1/2008
DIN
ZYL02500125
FamilyProducts
T340-inch, Straight flute, Plug Chamfer
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
KC7542
HAND Cutting direction
R - Right
ID Technical product number
3483101
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank

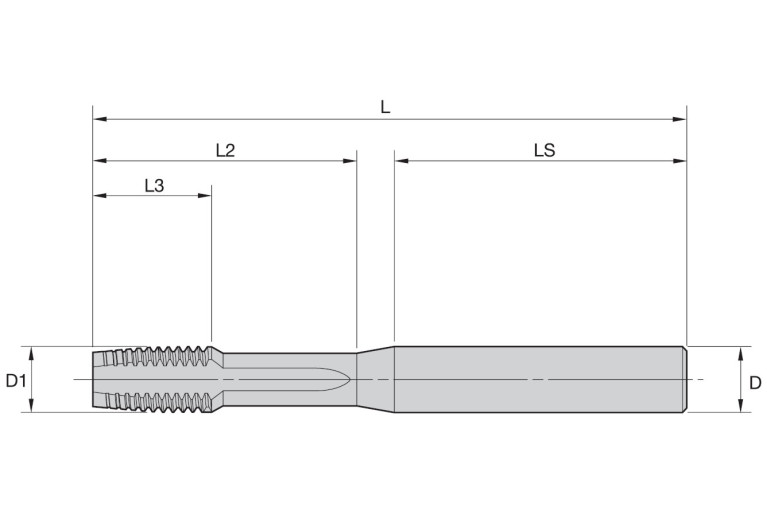

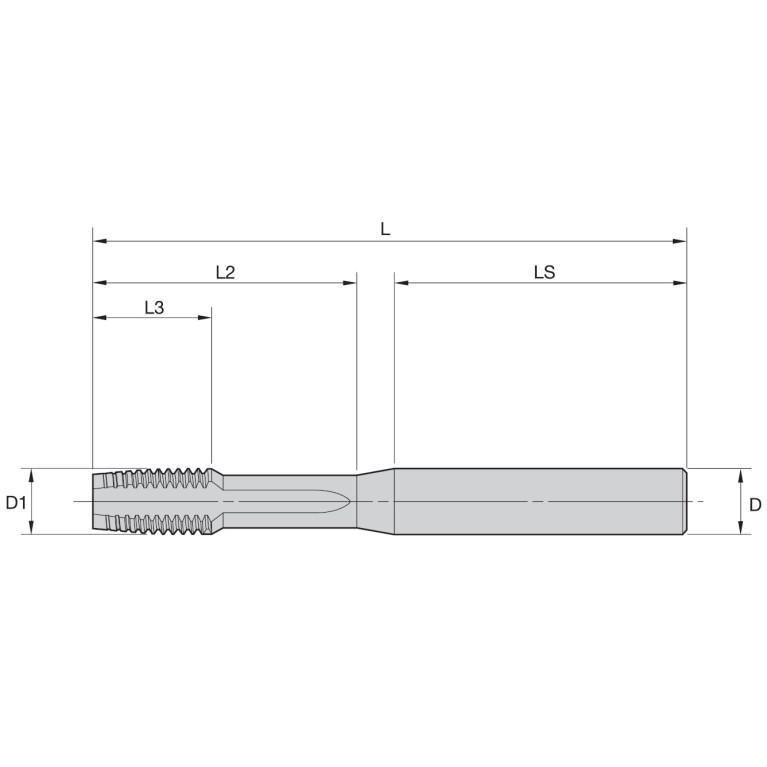

LDRED Neck length
19.9898 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
6.35 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02500125
LS Shank length
31.8008 mm
Materials
K
Name Identifying order number
T340NF#10-32R3B KC7542
NOF Flute count
3
OAL Overall length
59.944 mm
TCDCONMS ISO-tolerance class shank diameter
h6
TCTR Thread tolerance class
3B
TDZ Thread diameter size
10
THFT Thread form type
NF/UNF
THL Thread cutting part length
9.2456 mm
THOD Thread designation
NF/UNF10-32-3B
TPI Threads per inch
32 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
BG - Tapping
