Главная Каталог продукции Toolunited 13 301-02 - Thread cutting tap with reinforced shank T331NC6525-12R3B KC7542

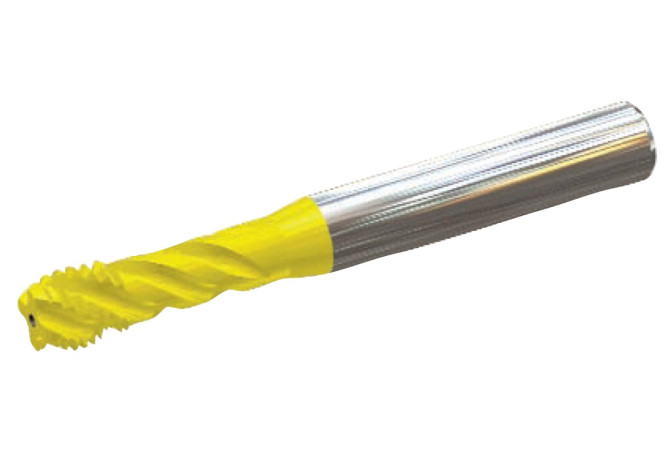

T331NC6525-12R3B KC7542

T331NC6525-12R3B KC7542 T331NC6525-12R3B KC7542 T331NC6525-12R3B KC7542

T331NC6525-12R3B KC7542

Kennametal
Артикул: 3483065
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
TiAlN-TiN
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
11/1/2008
DIN
ZYL05000135
FamilyProducts
T331-inch, right-hand spiral-flute, w/ coolant
FHA Flute helix angle
45 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
KC7542
HAND Cutting direction
R - Right
ID Technical product number
3483065
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank

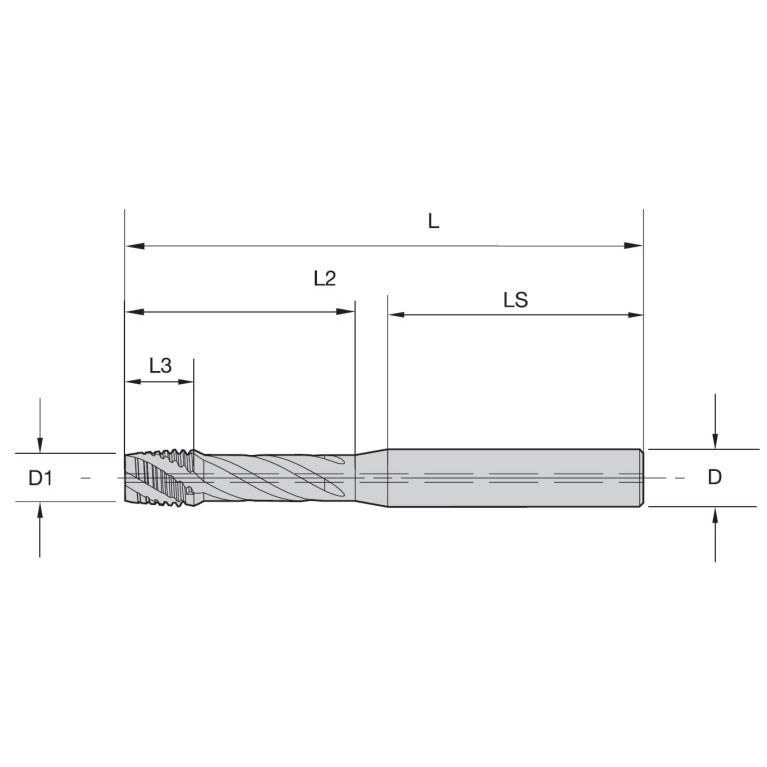

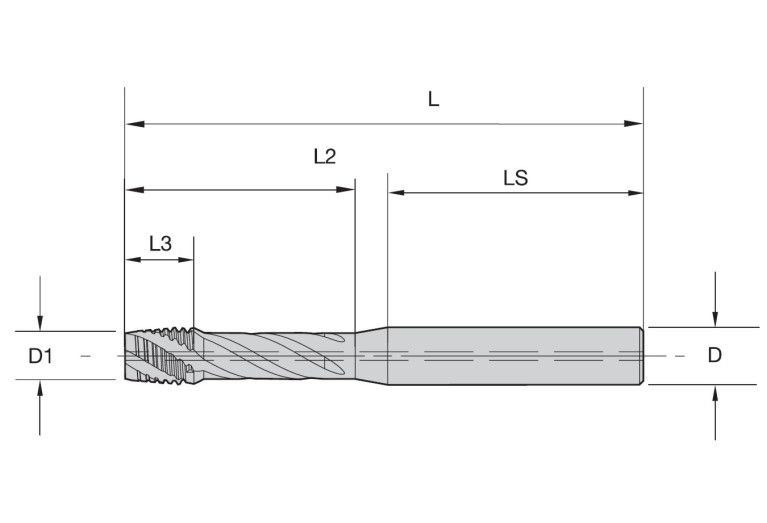

LDRED Neck length
56.0324 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03 DCONMS Diameter
12.7 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL05000135
LS Shank length
50.6984 mm
Materials
P
Name Identifying order number
T331NC6525-12R3B KC7542
NOF Flute count
4
OAL Overall length
109.982 mm
TCDCONMS ISO-tolerance class shank diameter
h6
TCTR Thread tolerance class
3B
TDFR Thread diameter nominal fraction
9/16 in
THFT Thread form type
NC/UNC
THL Thread cutting part length
16.9926 mm
THOD Thread designation
NC/UNC9/16-12-3B
TPI Threads per inch
12 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
BG - Tapping
