Главная Каталог продукции Toolunited 13 301-02 - Thread cutting tap with reinforced shank T320NC02500-20R3B KC7542

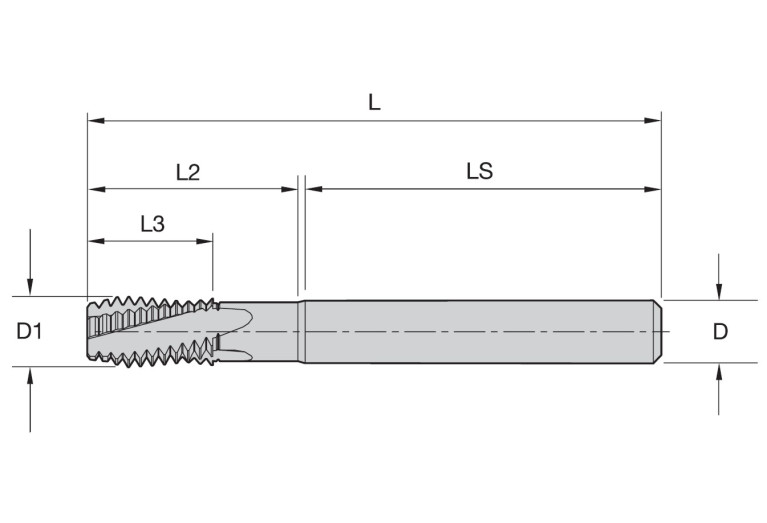

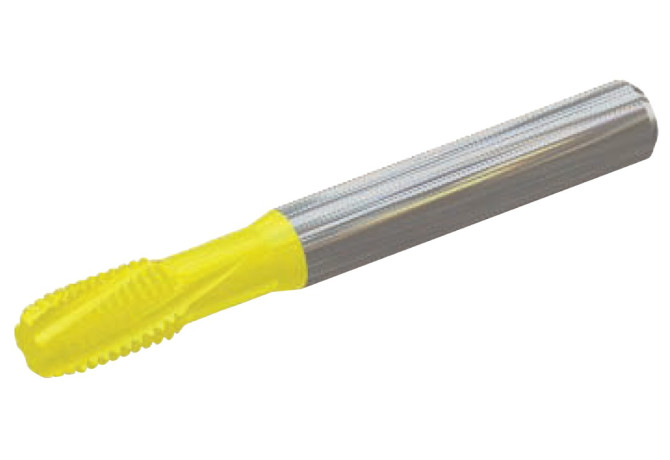

T320NC02500-20R3B KC7542

T320NC02500-20R3B KC7542 T320NC02500-20R3B KC7542 T320NC02500-20R3B KC7542

T320NC02500-20R3B KC7542

Kennametal
Артикул: 3031904
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TiAlN-TiN
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
11/1/2008
DIN
ZYL02500125
FamilyProducts
T320-inch, Left-Hand Spiral Flute, Plug Chamfer
FHA Flute helix angle
15 Degree
FHH Flute helix hand
L - Hand of helix left
GRDMFG Grade manufacturers designation
KC7542
HAND Cutting direction
L - Left
ID Technical product number
3031904
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
23.114 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
6.35 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02500125
LS Shank length
42.3164 mm
Materials
P
Name Identifying order number
T320NC02500-20R3B KC7542
NOF Flute count
3
OAL Overall length
70.104 mm
TCDCONMS ISO-tolerance class shank diameter
h6
TCTR Thread tolerance class
3B
TDFR Thread diameter nominal fraction
1/4 in
TDIN Thread diameter nominal inch
0.25 in
THFT Thread form type
NC/UNC
THL Thread cutting part length
17.526 mm
THOD Thread designation
NC/UNC1/4-20-3B
TPI Threads per inch
20 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
BG - Tapping
