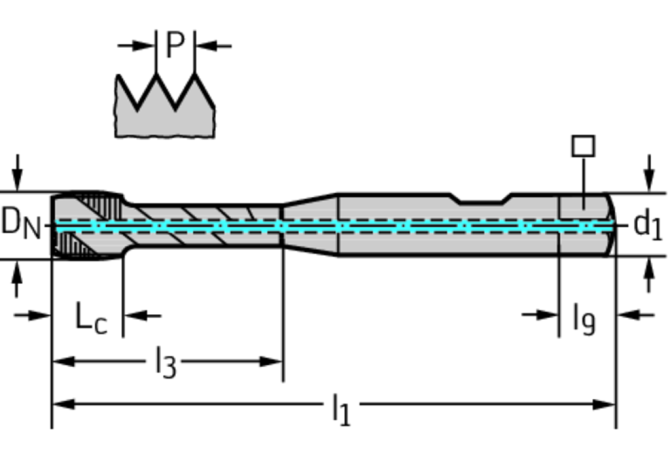

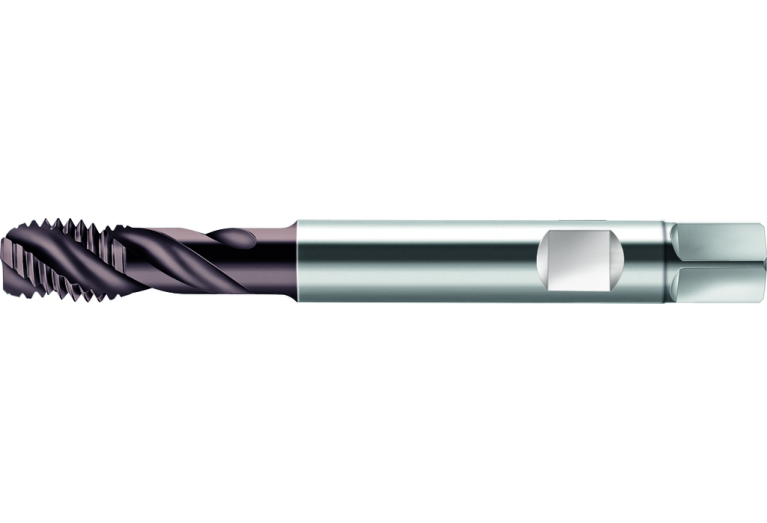

Главная Каталог продукции Toolunited 13 301-02 - Thread cutting tap with reinforced shank S2056312-M12

S2056312-M12

S2056312-M12

Walter

Артикул: 5101712

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

THL

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL01202115

DN Neck diameter

9.63 mm

FamilyProducts

HSS-E machine taps

FHA Flute helix angle

40 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

THL

HAND Cutting direction

R - Right

ID Technical product number

5101712

Interface codes

J6 / J61

ISO

ZYL21G1200h$06

ISYC Subclass

301-02 - Thread cutting tap with reinforced shank

LDRED Neck length

42 mm

LOC-03 CCFMS Form

21

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03 ISO

ZYL21G1200h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01202115

LS Shank length

33 mm

Materials

P,M,K,N,S,O

Name Identifying order number

S2056312-M12

NOF Flute count

3

OAL Overall length

110 mm

PLCD Gate diameter

10.16 mm

PLG Plug style

C - Kappa r 15°

STDNO Standard

~DIN 376

TCDCONMS ISO-tolerance class shank diameter

h6

TCL Tap chamfer length

4.91 mm

TCTR Thread tolerance class

6HX

TD Thread diameter

12 mm

THFT Thread form type

M

THL Thread cutting part length

18.5 mm

THOD Thread designation

M12x1.75-6HX

TP Thread pitch

1.75 mm

TTPID Tap type identifier

1 - Machine tap

Working process

EGI - Threading, internal

WT Weight of item

0.082 kg
