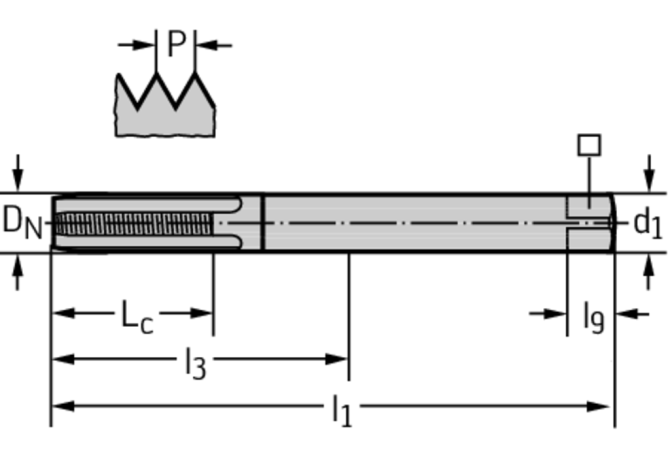

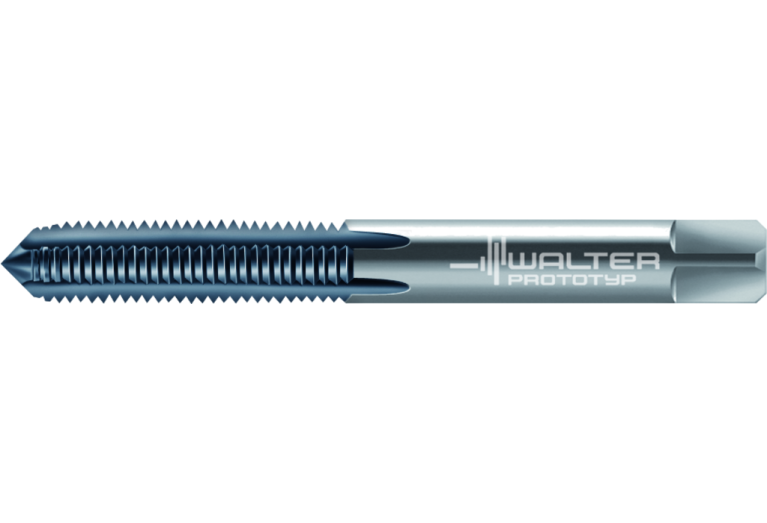

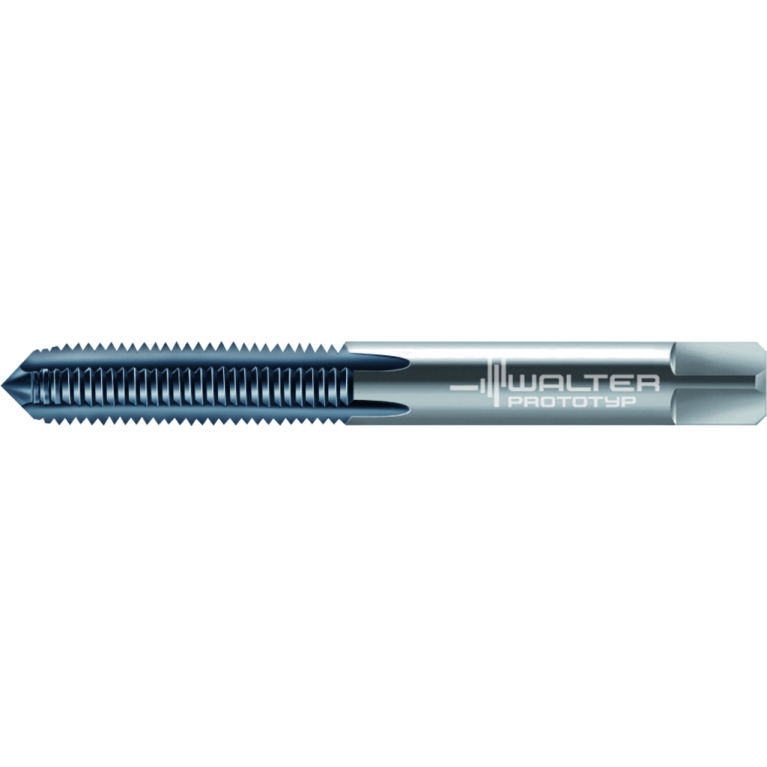

Главная Каталог продукции Toolunited 13 301-02 - Thread cutting tap with reinforced shank 8231106-UNC1/4

8231106-UNC1/4

8231106-UNC1/4 8231106-UNC1/4 8231106-UNC1/4

8231106-UNC1/4

Walter
Артикул: 5079818
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TiCN
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00702105
FamilyProducts
Solid carbide machine taps
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
TICN
HAND Cutting direction
R - Right
ID Technical product number
5079818
Interface codes
J6 / J61
ISO
ZYL21F7000h$06
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
20 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0070
LOC-03 DCONMS Diameter
7 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL21F7000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00702105
LS Shank length
27 mm
Materials
K,N,S,H,O
Name Identifying order number
8231106-UNC1/4
NOF Flute count
3
OAL Overall length
81.52 mm
PLCD Gate diameter
5.02 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
~DIN 2184-1
TCDCONMS ISO-tolerance class shank diameter
h6
TCL Tap chamfer length
3.56 mm
TCTR Thread tolerance class
2B
TDFR Thread diameter nominal fraction
1/4 in
TDIN Thread diameter nominal inch
0.25 in
THFT Thread form type
UNC
THL Thread cutting part length
20 mm
THOD Thread designation
UNC1/4-20-2B
TPI Threads per inch
20 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
EGI - Threading, internal
WT Weight of item
0.041 kg
