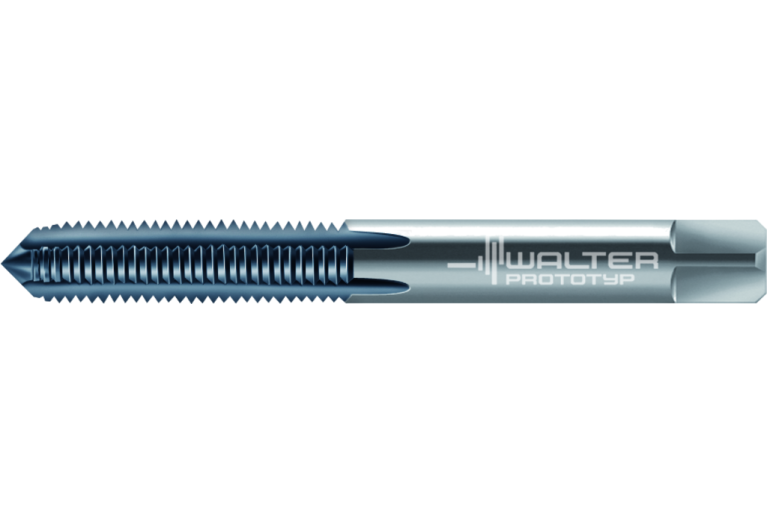

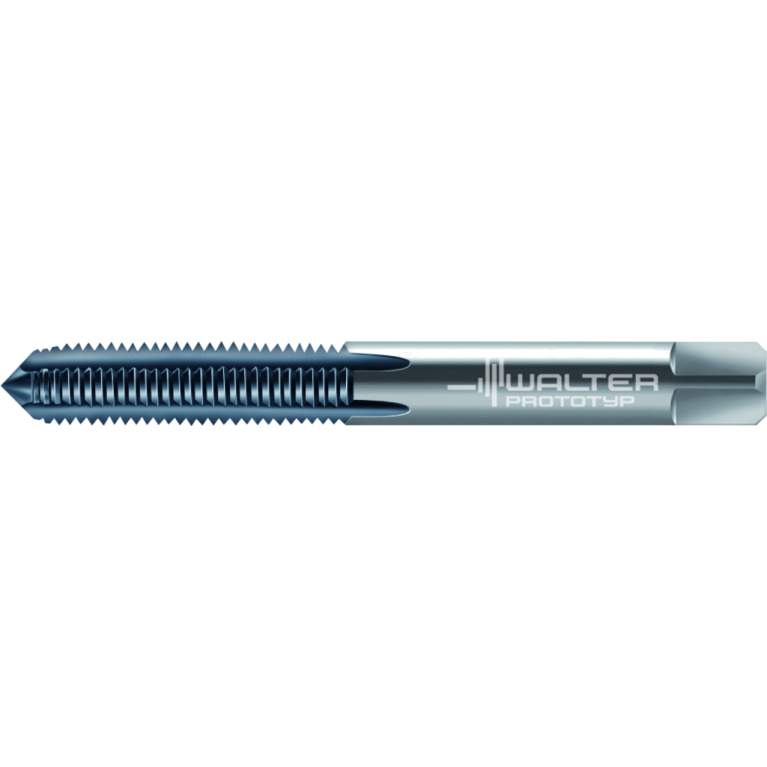

Главная Каталог продукции Toolunited 13 301-02 - Thread cutting tap with reinforced shank 8031106-M10

8031106-M10

8031106-M10 8031106-M10 8031106-M10

8031106-M10

Walter
Артикул: 5079707
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TiCN
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL01002105
FamilyProducts
Solid carbide machine taps
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
TICN
HAND Cutting direction
R - Right
ID Technical product number
5079707
Interface codes
J6 / J61
ISO
ZYL21G1000h$06
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
30 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL21G1000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01002105
LS Shank length
30 mm
Materials
K,N,S,H,O
Name Identifying order number
8031106-M10
NOF Flute count
3

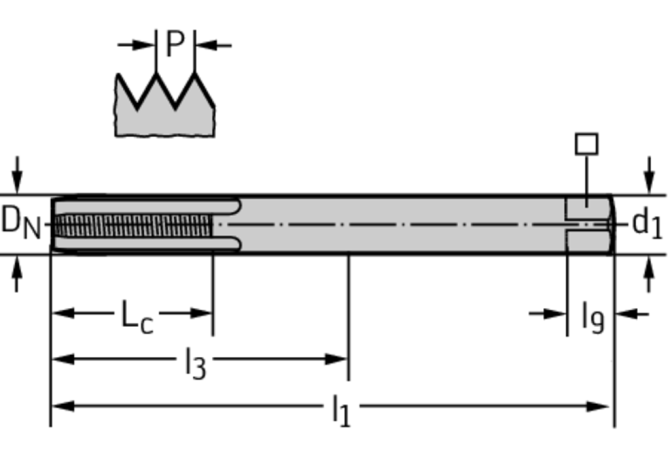

OAL Overall length
102.02 mm
PLCD Gate diameter
8.43 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
~DIN 371
TCDCONMS ISO-tolerance class shank diameter
h6
TCL Tap chamfer length
4.2 mm
TCTR Thread tolerance class
6H
TD Thread diameter
10 mm
THFT Thread form type
M
THL Thread cutting part length
30 mm
THOD Thread designation
M10x1.5-6H
TP Thread pitch
1.5 mm
TTPID Tap type identifier
1 - Machine tap
Working process
EGI - Threading, internal
WT Weight of item
0.1 kg
