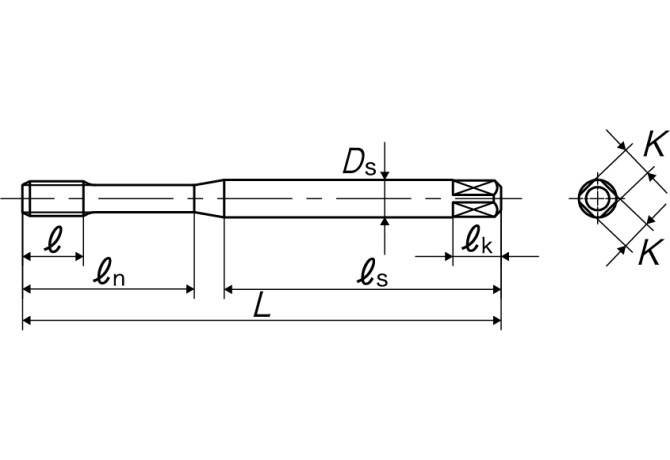

Главная Каталог продукции Toolunited 13 301-02 - Thread cutting tap with reinforced shank 5103101057

5103101057

5103101057 5103101057

5103101057

Yamawa
Артикул: 5103101057
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
YMW - Yamawa
CXSC Coolant exit style code
0 - Without coolant exit
Delivery state valid from
10/1/2024
DIN
ZYL00642105
DN Neck diameter
5.3 mm
DRVS Drive size
4.85 mm
FamilyProducts
VUSP 1.5P D4 M6X0.5 coated tap
FHA Flute helix angle
45 Degree
FHH Flute helix hand
R - Hand of helix right
GRDPRIO Standard designation of the grade main application
HSS-P
HAND Cutting direction
R - Right
ID Identifying order number
5103101057
Interface codes
J6 / J61
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LCF Length chip flute
29 mm
LDRED Neck length
30 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0064
LOC-03 DCONMS Diameter
6.48 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$08
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00642105
LS Shank length
44 mm
LU Usable length
30 mm
Materials
P,M,K,N,H
NOF Flute count
3
OAL Overall length
80 mm
OVERHANG LENGTH Overhang length
40.4 mm
PLCD Gate diameter
5.4 mm
PLG Plug style
E - Kappa r 23°
STDNO Standard
ANSI
TCDCONMS ISO-tolerance class shank diameter
h8
TCL Tap chamfer length
0.75 mm
TCTR Thread tolerance class
D4
TD Thread diameter
6 mm
THFT Thread form type
MF
THL Thread cutting part length
8 mm
THOD Thread designation
MF6×0,5-D4
TP Thread pitch
0.5 mm
TTPID Tap type identifier
1 - Machine tap
Working process
BGS - Thread cutting, blind hole
WT Weight of item
0.016 kg
