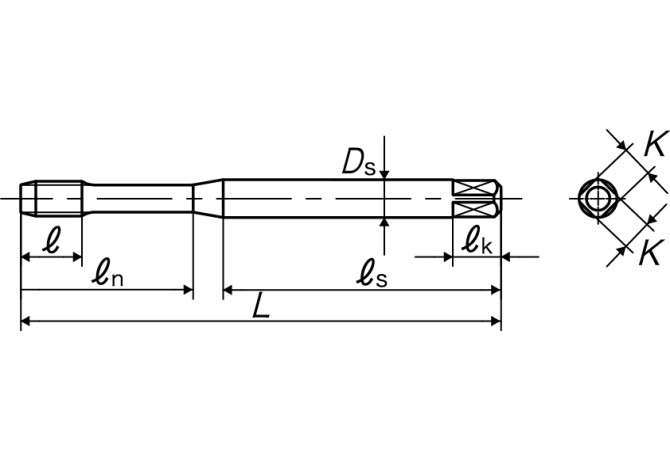

Главная Каталог продукции Toolunited 13 301-02 - Thread cutting tap with reinforced shank 5101103030

5101103030

5101103030 5101103030

5101103030

Yamawa
Артикул: 5101103030
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
YMW - Yamawa
CXSC Coolant exit style code
0 - Without coolant exit
Delivery state valid from
6/1/2024
DIN
ZYL03672125
DN Neck diameter
3.302 mm
DRVS Drive size
3.327 mm
FamilyProducts
VUSP GH3 8-36UNF coated tap
FHA Flute helix angle
50 Degree
FHH Flute helix hand
R - Hand of helix right
GRDPRIO Standard designation of the grade main application
HSS-P
HAND Cutting direction
R - Right
ID Identifying order number
5101103030
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
21.006 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
0367
LOC-03 DCONMS Diameter
9.3218 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$08
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03672125
LS Shank length
38.989 mm
Materials
P,M,K,N,H
NOF Flute count
2
OAL Overall length
62.992 mm
OVERHANG LENGTH Overhang length
27.94 mm
PLCD Gate diameter
3.353 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
ANSI
TCDCONMS ISO-tolerance class shank diameter
h8
TCL Tap chamfer length
1.753 mm
TCTR Thread tolerance class
GH3
TDIN Thread diameter nominal inch
0.164 in
TDZ Thread diameter size
8
THFT Thread form type
UNF
THL Thread cutting part length
7.01 mm
THOD Thread designation
UNF8-36-GH3
TPI Threads per inch
36 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
BGS - Thread cutting, blind hole
WT Weight of item
0.008 kg
