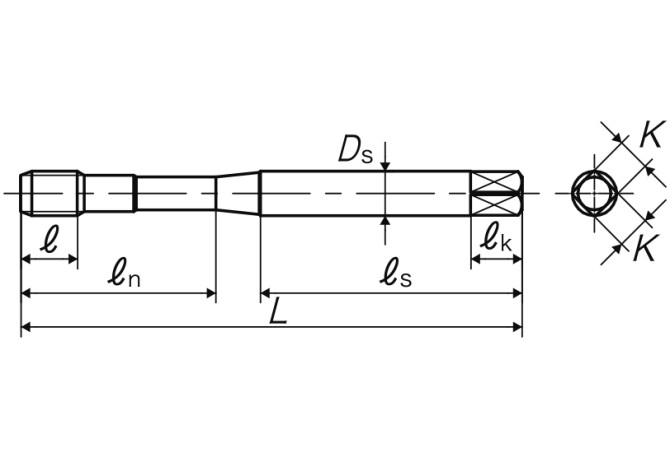

Главная Каталог продукции Toolunited 13 301-02 - Thread cutting tap with reinforced shank 5101101078

5101101078

5101101078 5101101078

5101101078

Yamawa
Артикул: 5101101078
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
YMW - Yamawa
CXSC Coolant exit style code
0 - Without coolant exit
Delivery state valid from
10/1/2024
DIN
ZYL00962105
DN Neck diameter
8.2 mm
DRVS Drive size
7.26 mm
FamilyProducts
VUSP D8 M10X1.5 coated tap
FHA Flute helix angle
48 Degree
FHH Flute helix hand
R - Hand of helix right
GRDPRIO Standard designation of the grade main application
HSS-P
HAND Cutting direction
R - Right
ID Identifying order number
5101101078
Interface codes
J6 / J61
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LCF Length chip flute
38 mm
LDRED Neck length
39 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0096
LOC-03 DCONMS Diameter
9.68 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$08
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00962105
LS Shank length
54 mm
LU Usable length
39 mm
Materials
P,M,K,N,H
NOF Flute count
3
OAL Overall length
100 mm
OVERHANG LENGTH Overhang length
51.4 mm
PLCD Gate diameter
8.3 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
ANSI
TCDCONMS ISO-tolerance class shank diameter
h8
TCL Tap chamfer length
3.75 mm
TCTR Thread tolerance class
D8
TD Thread diameter
10 mm
THFT Thread form type
M
THL Thread cutting part length
13 mm
THOD Thread designation
M10×1,5-D8
TP Thread pitch
1.5 mm
TTPID Tap type identifier
1 - Machine tap
Working process
BGS - Thread cutting, blind hole
WT Weight of item
0.051 kg
