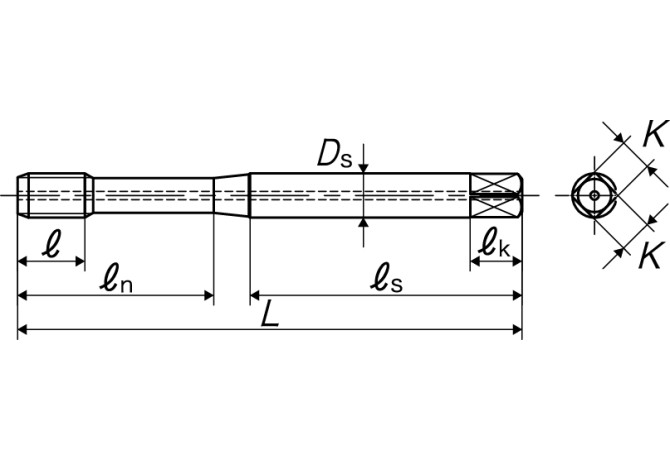

Главная Каталог продукции Toolunited 13 301-02 - Thread cutting tap with reinforced shank 3201101064

3201101064

3201101064 3201101064

3201101064

Yamawa
Артикул: 3201101064
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
YMW - Yamawa
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
Delivery state valid from
6/1/2024
DIN
ZYL00802115
DN Neck diameter
6.5 mm
DRVS Drive size
6.2 mm
FamilyProducts
VUSP CH 371 ISO2X M8X1.25C(2.5P) coated tap
FHA Flute helix angle
45 Degree
FHH Flute helix hand
R - Hand of helix right
GRDPRIO Standard designation of the grade main application
HSS-P
HAND Cutting direction
R - Right
ID Identifying order number
3201101064
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
35 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$08
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00802115
LS Shank length
47 mm
Materials
P,M,K,N,H
NOF Flute count
3
OAL Overall length
90 mm
OVERHANG LENGTH Overhang length
47.7 mm
PLCD Gate diameter
6.5 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN371
TCDCONMS ISO-tolerance class shank diameter
h8
TCL Tap chamfer length
3.125 mm
TCTR Thread tolerance class
ISO2X
TD Thread diameter
8 mm
THFT Thread form type
M
THL Thread cutting part length
12 mm
THOD Thread designation
M8x1.25-ISO2X
TP Thread pitch
1.25 mm
TTPID Tap type identifier
1 - Machine tap
Working process
BGS - Thread cutting, blind hole
WT Weight of item
0.028 kg
