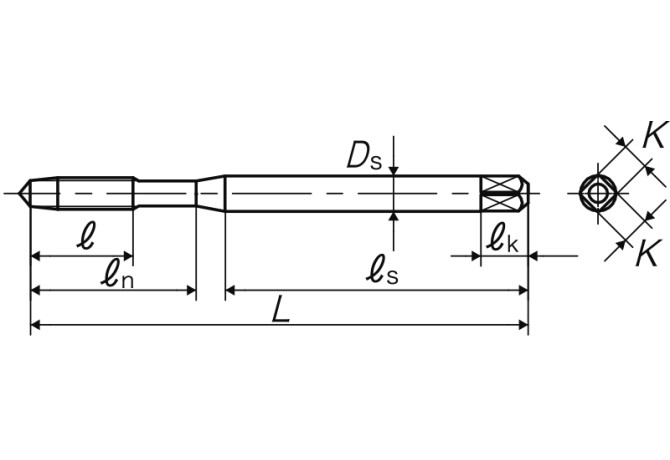

Главная Каталог продукции Toolunited 13 301-02 - Thread cutting tap with reinforced shank 3102103023

3102103023

3102103023 3102103023

3102103023

Yamawa
Артикул: 3102103023
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
YMW - Yamawa
CXSC Coolant exit style code
0 - Without coolant exit
Delivery state valid from
6/1/2024
DIN
ZYL00402105
DN Neck diameter
2.5 mm
DRVS Drive size
3 mm
FamilyProducts
VUPO 371 2BX 6-32UNC coated tap
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDPRIO Standard designation of the grade main application
HSS-P
HAND Cutting direction
R - Right
ID Identifying order number
3102103023
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
19 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0040
LOC-03 DCONMS Diameter
4 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$08
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00402105
LS Shank length
32 mm
Materials
P,M,K,N,H
NOF Flute count
2
OAL Overall length
56 mm
OVERHANG LENGTH Overhang length
27.2 mm
PLCD Gate diameter
2.608 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
DIN371
TCDCONMS ISO-tolerance class shank diameter
h8
TCL Tap chamfer length
3.968 mm
TCTR Thread tolerance class
2BX
TD Thread diameter
3.505 mm
TDZ Thread diameter size
6
THFT Thread form type
UNC
THL Thread cutting part length
11 mm
THOD Thread designation
UNC6-32-2BX
TPI Threads per inch
32 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
BGD - Thread cutting, through hole
WT Weight of item
0.005 kg
