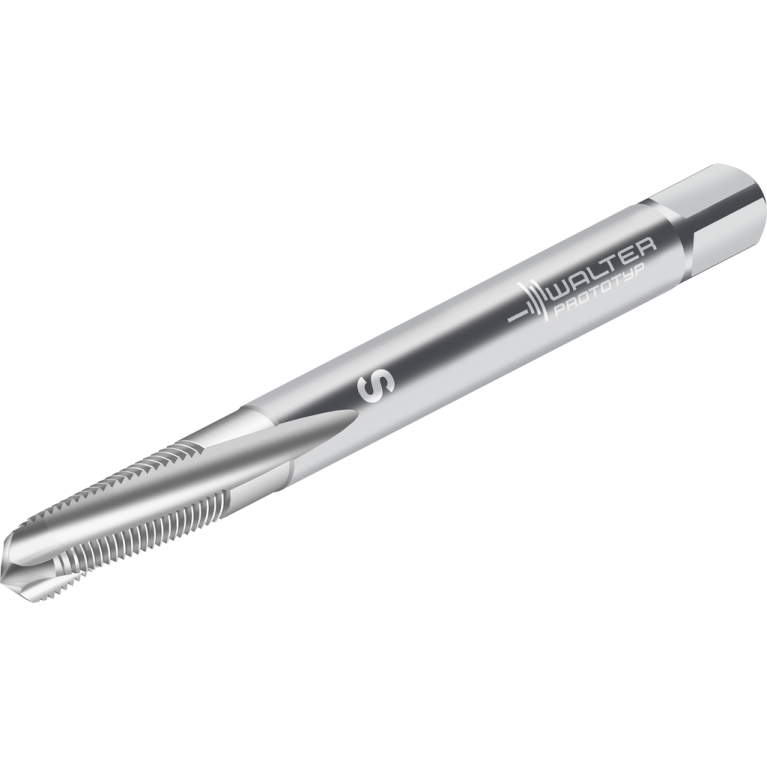

Главная Каталог продукции Toolunited 13 301-02 - Thread cutting tap with reinforced shank 234101-UNJF12

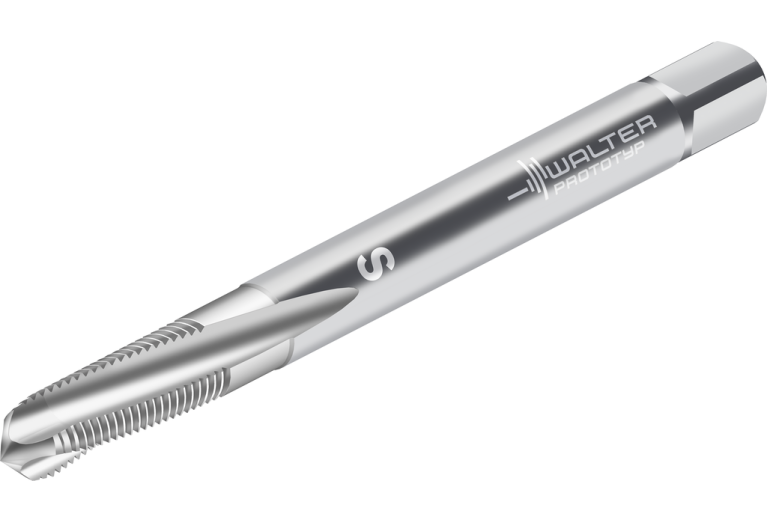

234101-UNJF12

234101-UNJF12 234101-UNJF12 234101-UNJF12

234101-UNJF12

Walter
Артикул: 8540583
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
Delivery state valid from
6/1/2024
DIN
ZYL00602105
FamilyProducts
HSS-E PM machine taps
FHA Flute helix angle
10 Degree
FHH Flute helix hand
R - Hand of helix right
HAND Cutting direction
R - Right
ID Technical product number
8540583
Interface codes
J6 / J61
ISO
ZYL21F6000h$09
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
14.5 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21F6000h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00602105
LS Shank length
27 mm
Materials
P,N,S
Name Identifying order number
234101-UNJF12
NOF Flute count
3
OAL Overall length
82.29 mm
OVERHANG LENGTH Overhang length
59.29 mm
PLCD Gate diameter
4.53 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
~DIN 2184-1
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
2.27 mm
TCTR Thread tolerance class
3B
TDIN Thread diameter nominal inch
0.216 in
TDZ Thread diameter size
12
THFT Thread form type
UNJF
THL Thread cutting part length
14.5 mm
THOD Thread designation
UNJF12-28-3B
TPI Threads per inch
28 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
BG - Tapping
WT Weight of item
0.001 kg
