Главная Каталог продукции Toolunited 13 301-02 - Thread cutting tap with reinforced shank 22410-UNC12

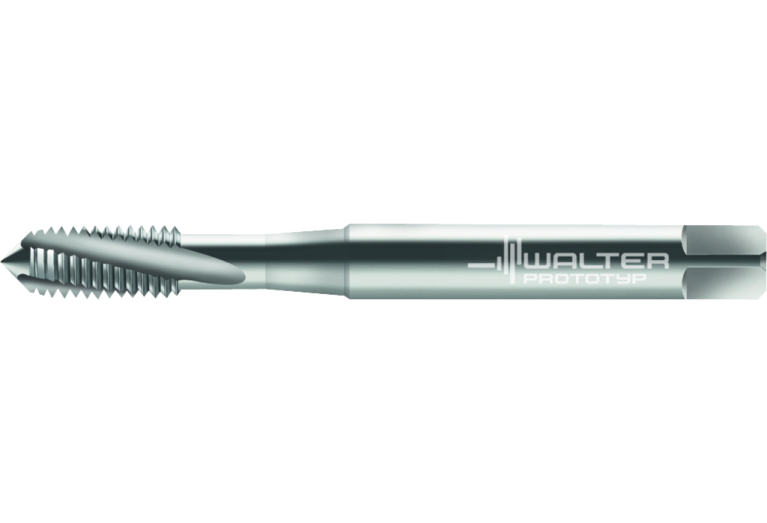

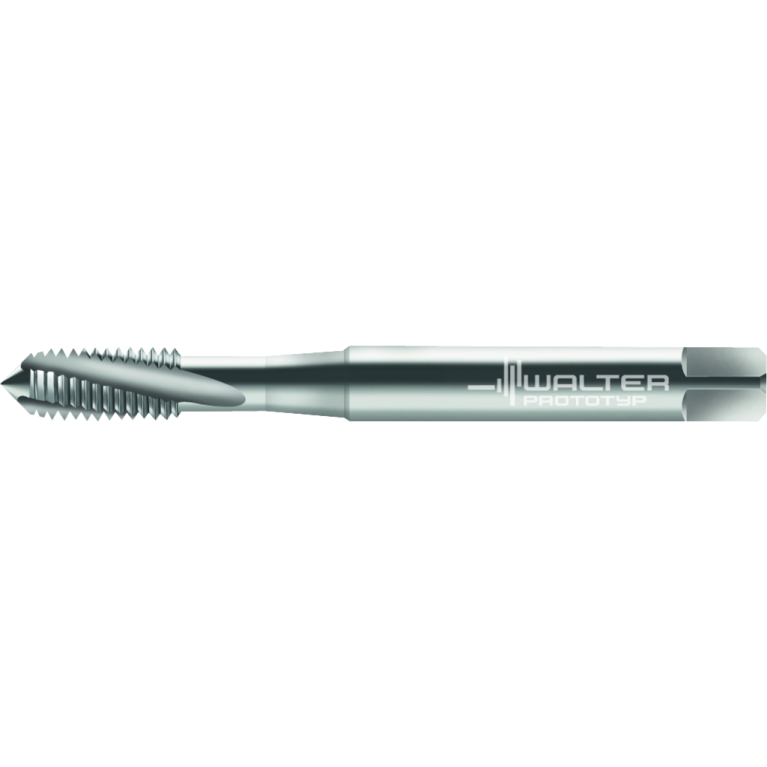

22410-UNC12

22410-UNC12 22410-UNC12 22410-UNC12

22410-UNC12

Walter
Артикул: 5078168
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
ohne
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00602105
DN Neck diameter
4.07 mm
FamilyProducts
HSS-E machine taps
FHA Flute helix angle
15 Degree
FHH Flute helix hand
R - Hand of helix right
HAND Cutting direction
R - Right
ID Technical product number
5078168
Interface codes
J6 / J61
ISO
ZYL21F6000h$09
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
30 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21F6000h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00602105
LS Shank length
27 mm
Materials
P,K,N
Name Identifying order number
22410-UNC12
NOF Flute count
3
OAL Overall length
81.41 mm
PLCD Gate diameter
4.37 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 2184-1
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
2.97 mm
TCTR Thread tolerance class
2B
TDIN Thread diameter nominal inch
0.216 in
TDZ Thread diameter size
12
THFT Thread form type
UNC
THL Thread cutting part length
10 mm
THOD Thread designation
UNC12-24-2B
TPI Threads per inch
24 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
EGI - Threading, internal
WT Weight of item
0.015 kg
