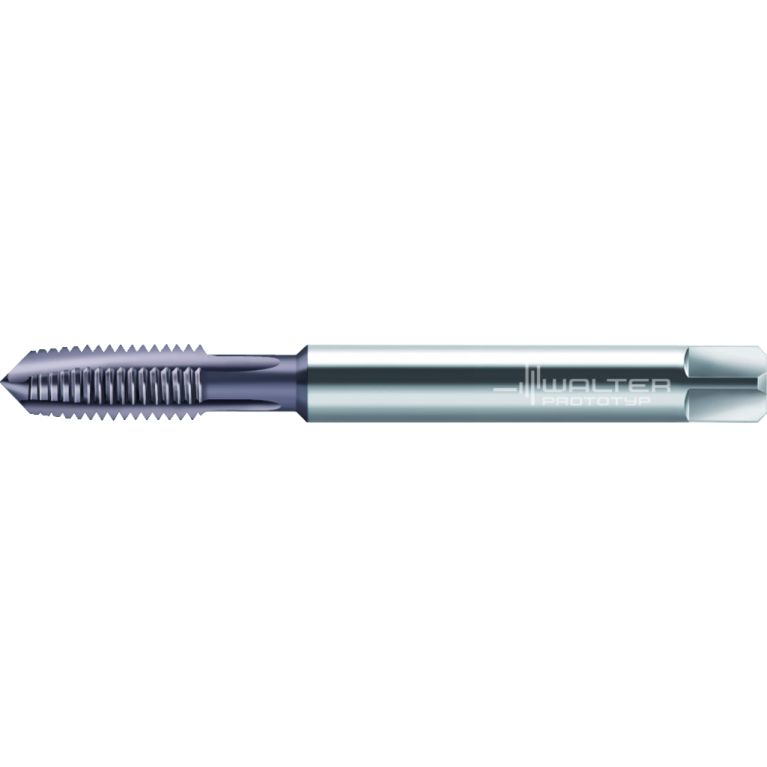

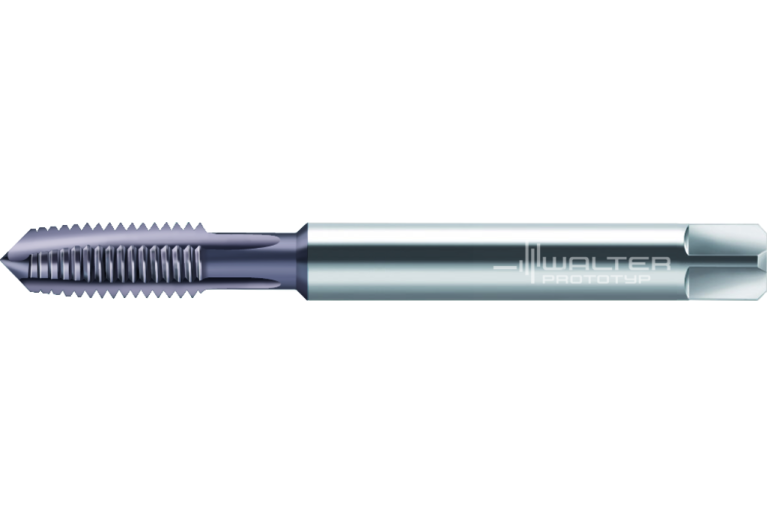

Главная Каталог продукции Toolunited 13 301-02 - Thread cutting tap with reinforced shank 2220763-UNJC3/8

2220763-UNJC3/8

2220763-UNJC3/8 2220763-UNJC3/8 2220763-UNJC3/8

2220763-UNJC3/8

Walter
Артикул: 8540861
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
Al2O3
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
Delivery state valid from
6/1/2024
DIN
ZYL01002105

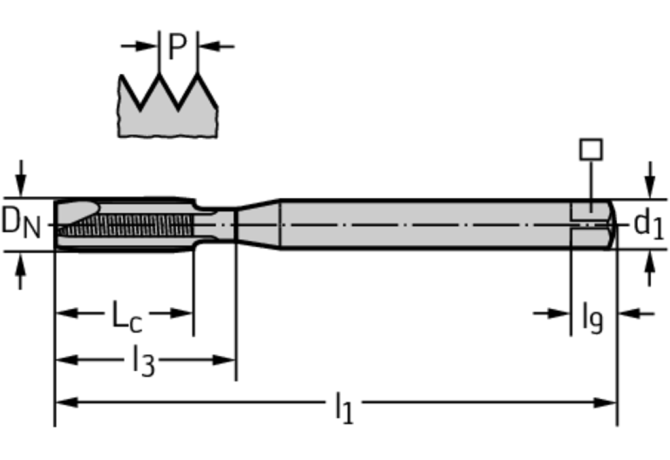

DN Neck diameter
7.36 mm
FamilyProducts
HSS-E PM machine taps
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
ACN
HAND Cutting direction
R - Right
ID Technical product number
8540861
Interface codes
J6 / J61
ISO
ZYL21G1000h$09
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
33 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21G1000h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01002105
LS Shank length
30 mm
Name Identifying order number
2220763-UNJC3/8
NOF Flute count
3
OAL Overall length
101.77 mm
OVERHANG LENGTH Overhang length
73.77 mm
PLCD Gate diameter
7.86 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
~DIN 2184-1
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
7.14 mm
TCTR Thread tolerance class
3B
TDFR Thread diameter nominal fraction
3/8 in
TDIN Thread diameter nominal inch
0.375 in
THFT Thread form type
UNJC
THL Thread cutting part length
20 mm
THOD Thread designation
UNJC3/8-16-3B
TPI Threads per inch
16 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
BG - Tapping
WT Weight of item
0.056 kg
