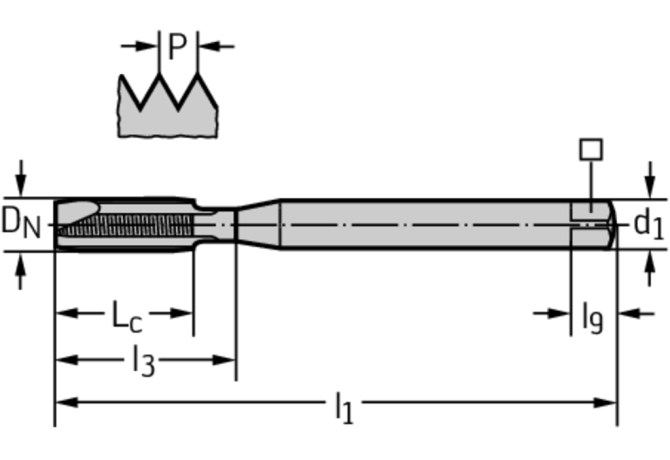

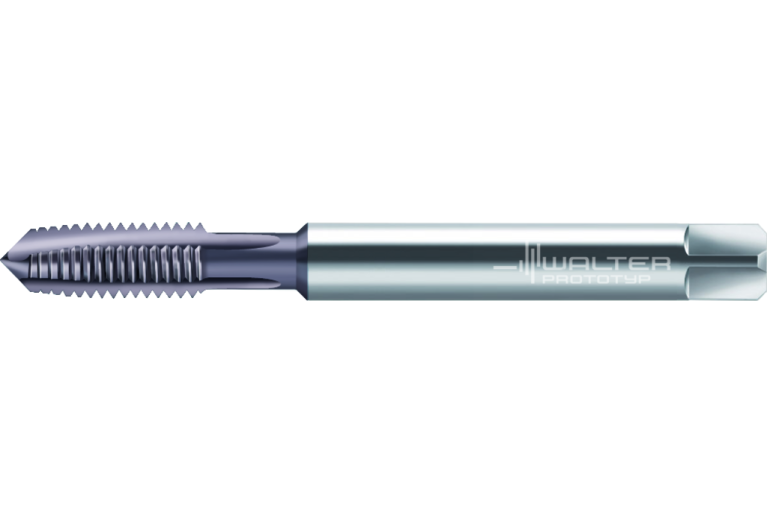

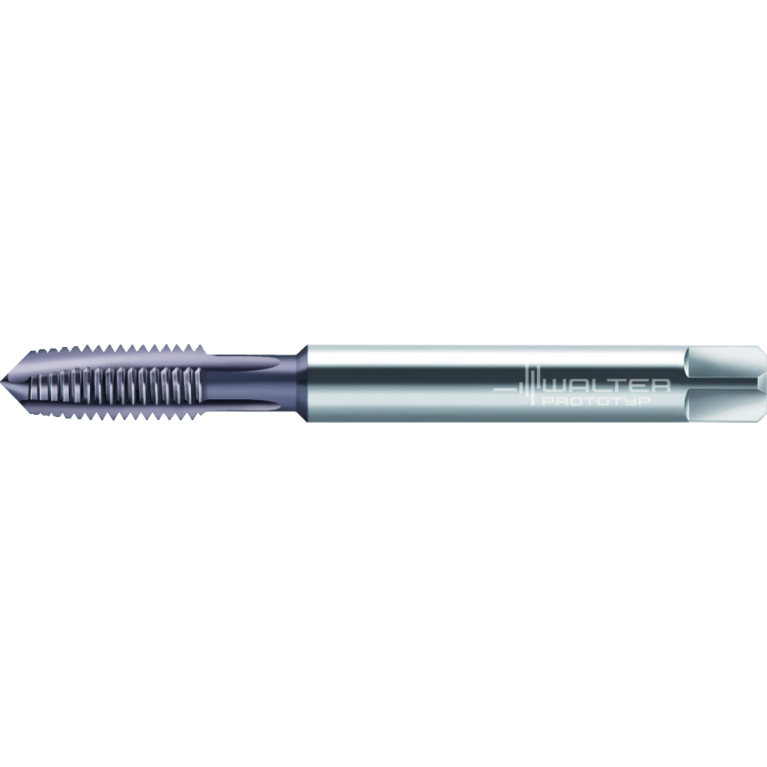

Главная Каталог продукции Toolunited 13 301-02 - Thread cutting tap with reinforced shank 2020763-MJ4

2020763-MJ4

2020763-MJ4 2020763-MJ4 2020763-MJ4

2020763-MJ4

Walter
Артикул: 8540850
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
Al2O3
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
Delivery state valid from
6/1/2024
DIN
ZYL00452105
FamilyProducts
HSS-E PM machine taps
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
ACN
HAND Cutting direction
R - Right
ID Technical product number
8540850
Interface codes
J6 / J61
ISO
ZYL21F4500h$09
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
13 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0045
LOC-03 DCONMS Diameter
4.5 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21F4500h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00452105
LS Shank length
21 mm
Name Identifying order number
2020763-MJ4
NOF Flute count
3
OAL Overall length
64.65 mm
OVERHANG LENGTH Overhang length
43.65 mm
PLCD Gate diameter
3.27 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
~DIN 371
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
3.15 mm
TCTR Thread tolerance class
4H
TD Thread diameter
4 mm
THFT Thread form type
MJ
THL Thread cutting part length
13 mm
THOD Thread designation
MJ4x0.7-4H
TP Thread pitch
0.7 mm
TTPID Tap type identifier
1 - Machine tap
Working process
BG - Tapping
WT Weight of item
0.008 kg
