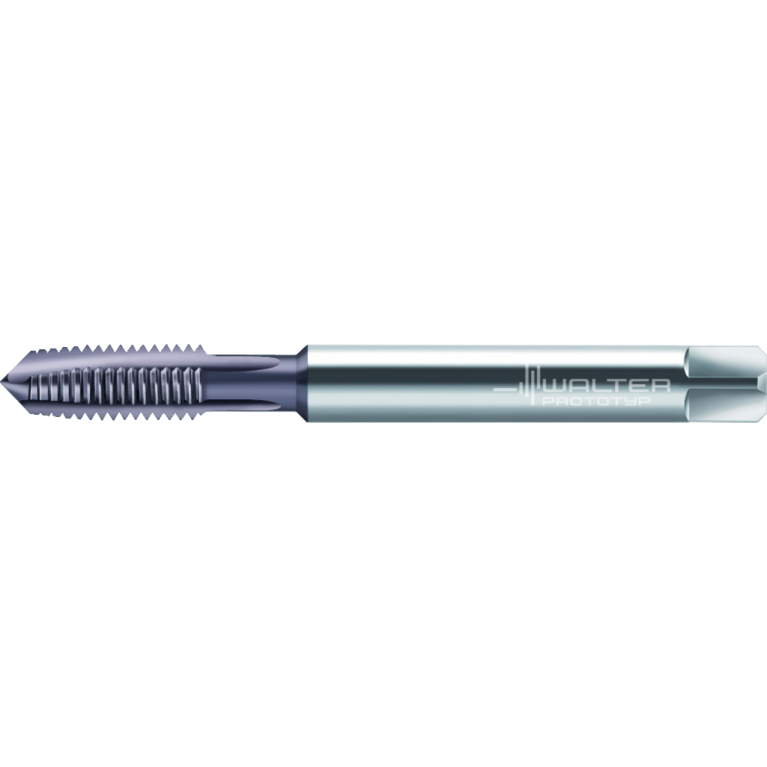

Главная Каталог продукции Toolunited 13 301-02 - Thread cutting tap with reinforced shank 2020763-MJ3

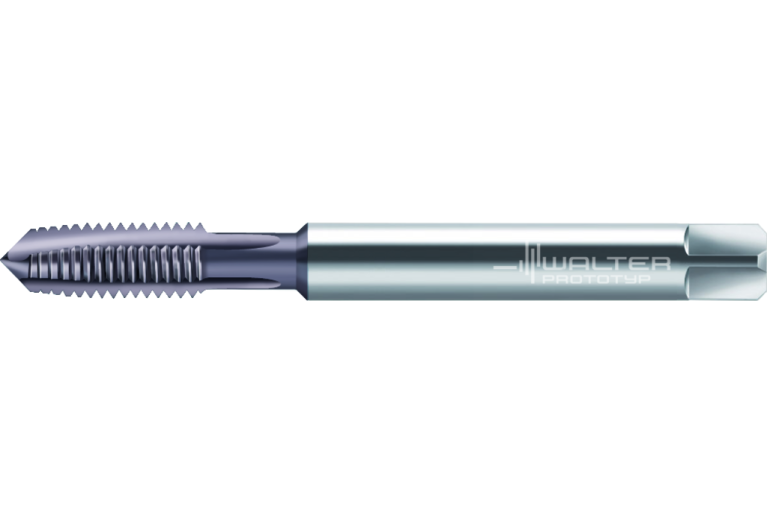

2020763-MJ3

2020763-MJ3 2020763-MJ3 2020763-MJ3

2020763-MJ3

Walter
Артикул: 8540589
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
Al2O3
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
Delivery state valid from
6/1/2024
DIN
ZYL00352105
FamilyProducts
HSS-E PM machine taps
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
ACN
HAND Cutting direction
R - Right
ID Technical product number
8540589
Interface codes
J6 / J61
ISO
ZYL21F3500h$09
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
10 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0035
LOC-03 DCONMS Diameter
3.5 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21F3500h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00352105
LS Shank length
21 mm
Name Identifying order number
2020763-MJ3
NOF Flute count
2
OAL Overall length
57.25 mm
OVERHANG LENGTH Overhang length
36.25 mm
PLCD Gate diameter
2.48 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
~DIN 371
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
2.25 mm
TCTR Thread tolerance class
4H
TD Thread diameter
3 mm
THFT Thread form type
MJ
THL Thread cutting part length
10 mm
THOD Thread designation
MJ3x0.5-4H
TP Thread pitch
0.5 mm
TTPID Tap type identifier
1 - Machine tap
Working process
BG - Tapping
WT Weight of item
0.006 kg
