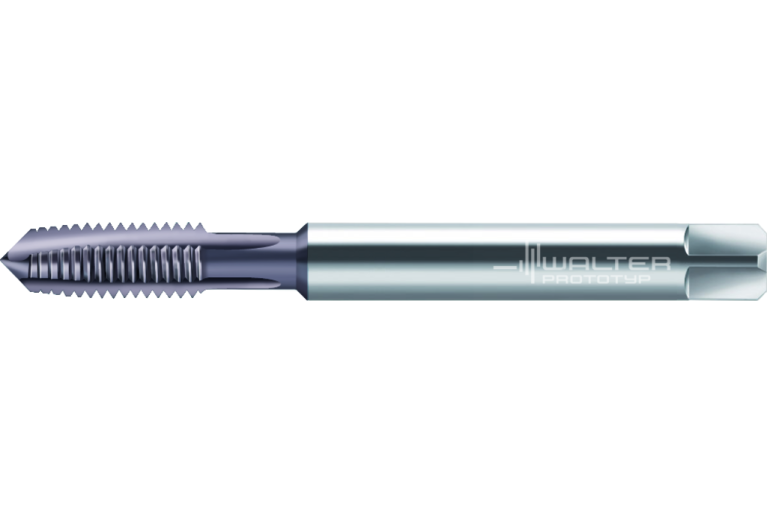

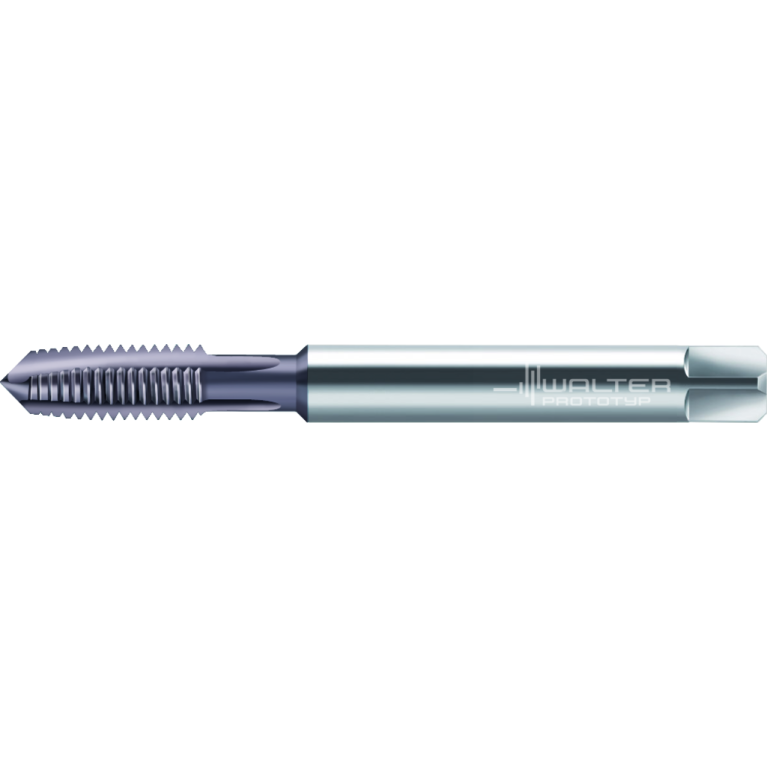

Главная Каталог продукции Toolunited 13 301-02 - Thread cutting tap with reinforced shank 2020763-MJ10

2020763-MJ10

2020763-MJ10 2020763-MJ10 2020763-MJ10

2020763-MJ10

Walter
Артикул: 8540854
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
Al2O3
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
Delivery state valid from
6/1/2024
DIN
ZYL01002105

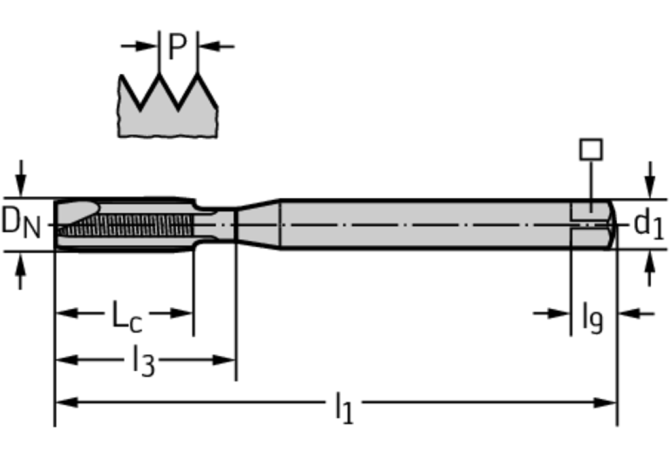

DN Neck diameter
7.95 mm
FamilyProducts
HSS-E PM machine taps
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
ACN
HAND Cutting direction
R - Right
ID Technical product number
8540854
Interface codes
J6 / J61
ISO
ZYL21G1000h$09
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
33 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21G1000h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01002105
LS Shank length
30 mm
Name Identifying order number
2020763-MJ10
NOF Flute count
3
OAL Overall length
101.67 mm
OVERHANG LENGTH Overhang length
73.67 mm
PLCD Gate diameter
8.43 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
~DIN 371
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
6.75 mm
TCTR Thread tolerance class
4H
TD Thread diameter
10 mm
THFT Thread form type
MJ
THL Thread cutting part length
20 mm
THOD Thread designation
MJ10x1.5-4H
TP Thread pitch
1.5 mm
TTPID Tap type identifier
1 - Machine tap
Working process
BG - Tapping
WT Weight of item
0.001 kg
