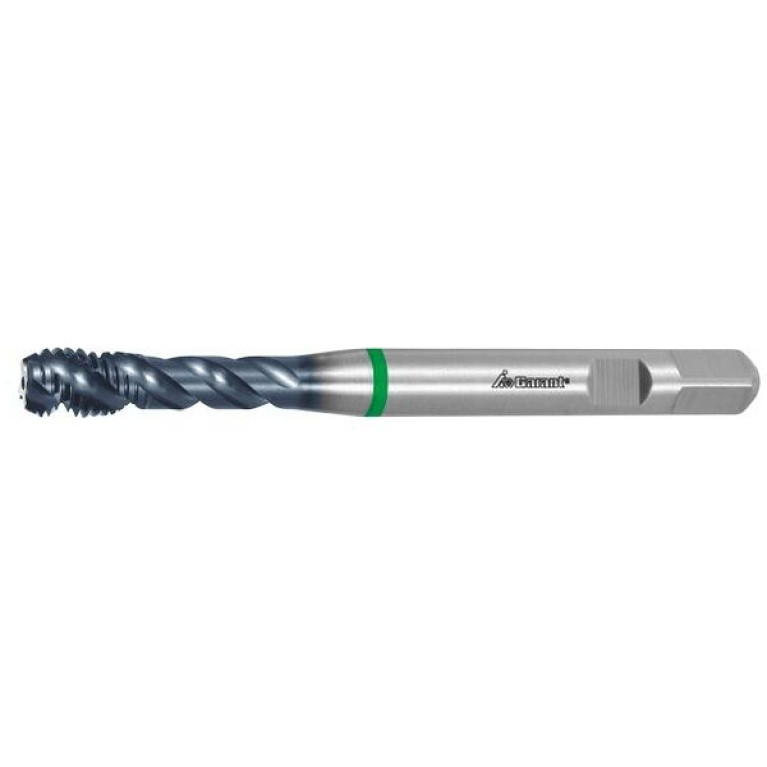

Главная Каталог продукции Toolunited 13 301-02 - Thread cutting tap with reinforced shank 137186 8X1

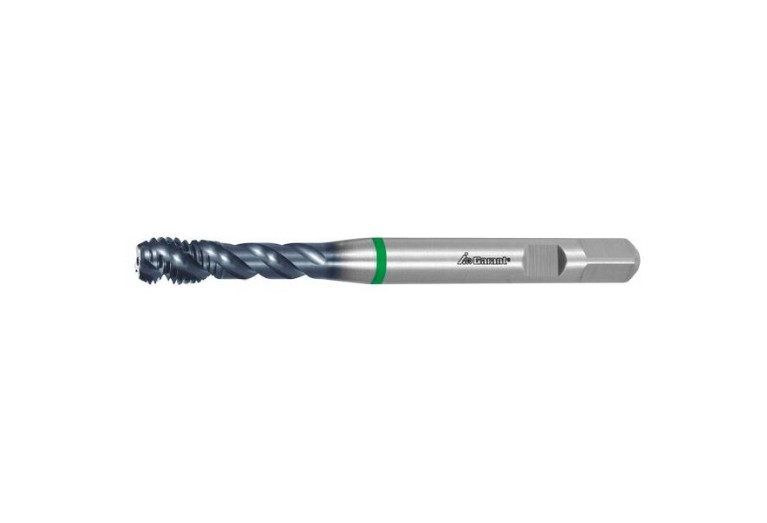

137186 8X1

137186 8X1 137186 8X1 137186 8X1

137186 8X1

Hoffmann Group
Артикул: 137186 8X1
В наличии
В корзину
Описание
Характеристики
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
TiAlN
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL00801015
FamilyProducts
GARANT Blind hole machine tap for synchronised spindles IC /
FHA Flute helix angle
45 Degree
FHH Flute helix hand
R - Hand of helix right
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
90 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00801015

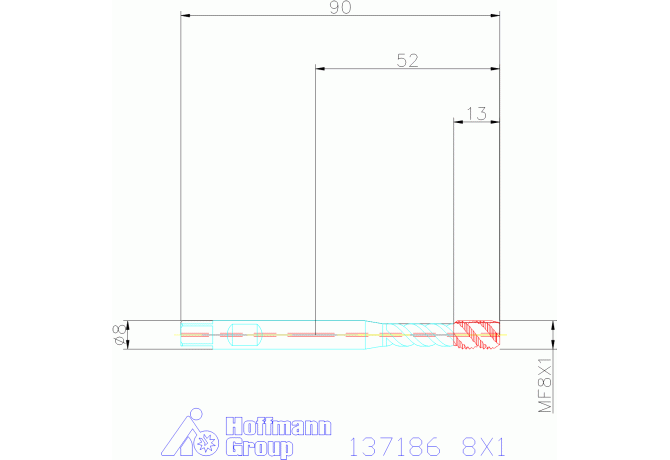

LS Shank length
52 mm
Name Identifying order number
137186 8X1
NOF Flute count
3
OAL Overall length
90 mm
PLCD Gate diameter
6.85 mm
PLG Plug style
C - Kappa r 15°
TCL Tap chamfer length
2.28 mm
TCTR Thread tolerance class
6HX
TD Thread diameter
8 mm
THFT Thread form type
MF
THL Thread cutting part length
13 mm
THOD Thread designation
MF8x1-6HX
TP Thread pitch
1 mm
TTPID Tap type identifier
1 - Machine tap
Working process
BG - Tapping
WT Weight of item
0.041 kg
