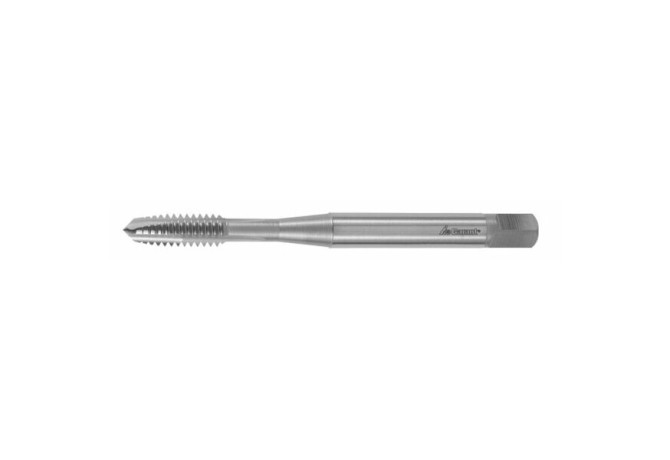

Главная Каталог продукции Toolunited 13 301-02 - Thread cutting tap with reinforced shank 133350 5-40

133350 5-40

133350 5-40 133350 5-40 133350 5-40

133350 5-40

Hoffmann Group
Артикул: 133350 5-40
В наличии
В корзину
Описание
Характеристики
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL00352105
FamilyProducts
GARANT Through hole machine tap
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0035
LOC-03 DCONMS Diameter
3.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00352105
LS Shank length
33.4 mm
Name Identifying order number
133350 5-40
NOF Flute count
3
OAL Overall length
56 mm
PLCD Gate diameter
2.536 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
ASME-B1.1.
TCL Tap chamfer length
1.89 mm
TCTR Thread tolerance class
6H
TD Thread diameter
3.17 mm
TDZ Thread diameter size
5
THFT Thread form type
UNC
THL Thread cutting part length
12 mm
THOD Thread designation
UNC5-40-6H
TPI Threads per inch
40 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
BG - Tapping
WT Weight of item
0.005 kg
