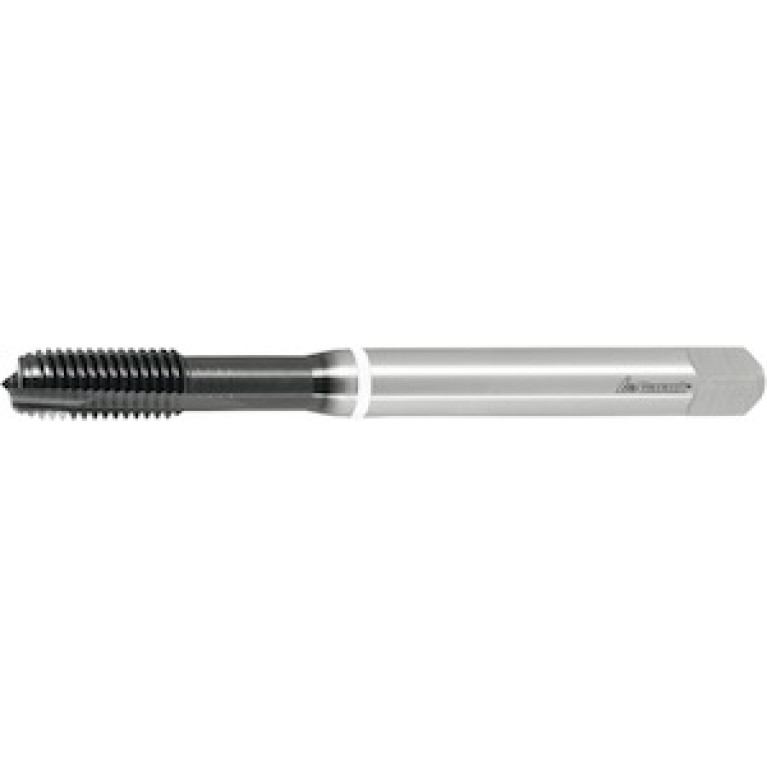

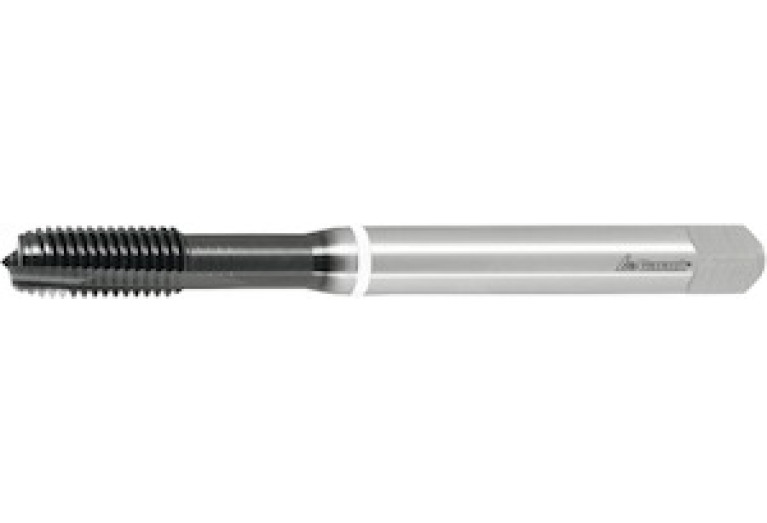

Главная Каталог продукции Toolunited 13 301-02 - Thread cutting tap with reinforced shank 132610 M2,5

132610 M2,5

132610 M2,5 132610 M2,5 132610 M2,5

132610 M2,5

Hoffmann Group
Артикул: 132610 M2,5
В наличии
В корзину
Описание
Характеристики
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
DLC
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL00282105
FamilyProducts
GARANT Through hole machine tap HSSE-PM
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0028
LOC-03 DCONMS Diameter
2.8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00282105
LS Shank length
35 mm
Name Identifying order number
132610 M2,5
NOF Flute count
2

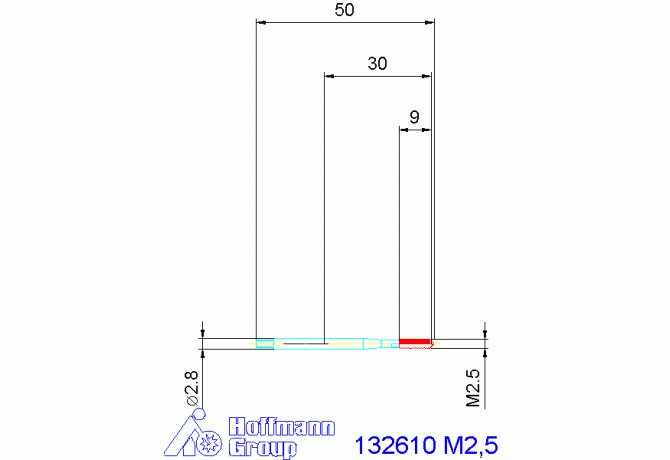

OAL Overall length
50 mm
PLCD Gate diameter
1.9 mm
PLG Plug style
CS
TCL Tap chamfer length
1.24 mm
TCTR Thread tolerance class
6H
TD Thread diameter
2.5 mm
THFT Thread form type
M
THL Thread cutting part length
9 mm
THOD Thread designation
M2.5x0.45-6H
TP Thread pitch
0.45 mm
TTPID Tap type identifier
1 - Machine tap
Working process
BG - Tapping
WT Weight of item
0.003 kg
