Главная Каталог продукции Toolunited 13 301-01 - Thread cutting tap with offset shank TP3 M10X1.5-6H-CAW-HS

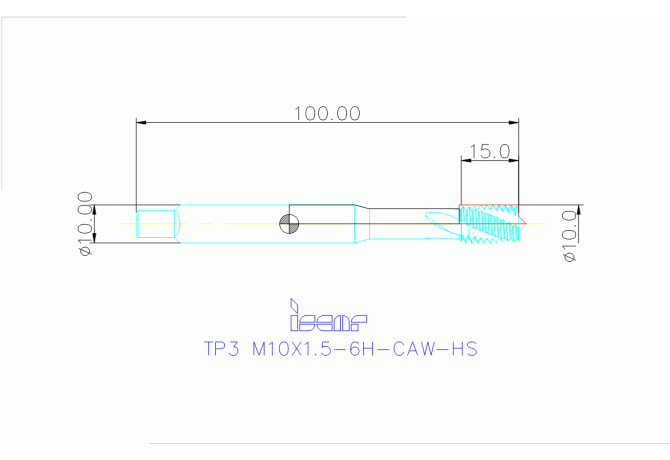

TP3 M10X1.5-6H-CAW-HS

TP3 M10X1.5-6H-CAW-HS TP3 M10X1.5-6H-CAW-HS

TP3 M10X1.5-6H-CAW-HS

Iscar
Артикул: 4445070
В наличии
В корзину
Описание
Характеристики
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2014
DIN
ZYL01002105
FamilyProducts
HSS R.H. Maschinengewindebohrer mit 40° Drallw., T
FHA Flute helix angle
40 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
HS
HAND Cutting direction
R - Right
ID Technical product number
4445070
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01002105
Name Identifying order number
TP3 M10X1.5-6H-CAW-HS
NOF Flute count
1
OAL Overall length
100 mm
PLCD Gate diameter
8.5 mm
STDNO Standard
DIN371
TD Thread diameter
10 mm
THFT Thread form type
M
THL Thread cutting part length
15 mm
TP Thread pitch
1.5 mm
Working process
BG - Tapping
