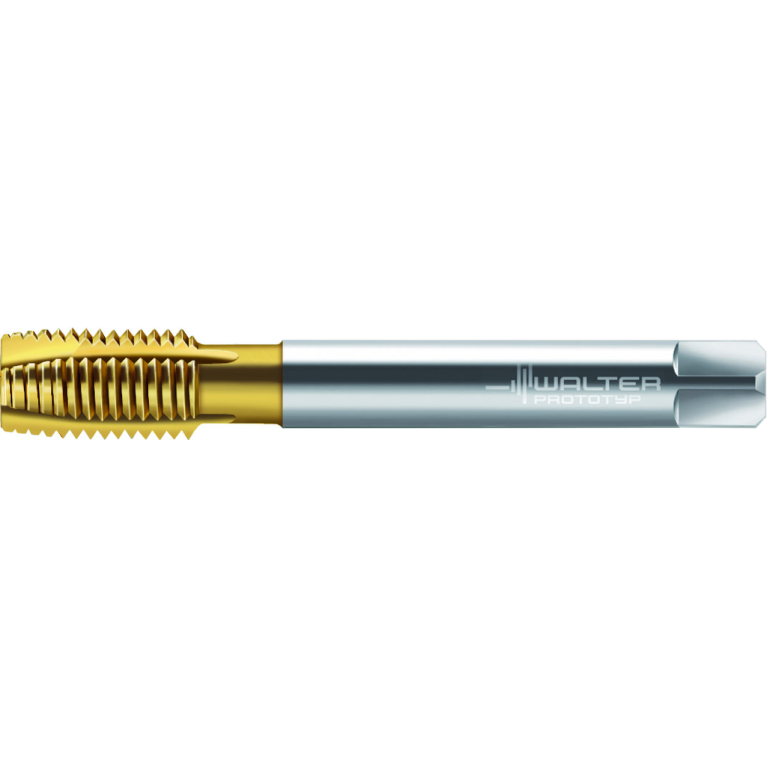

Главная Каталог продукции Toolunited 13 301-01 - Thread cutting tap with offset shank TD217-M4X0.5-N0-WY80FC

TD217-M4X0.5-N0-WY80FC

TD217-M4X0.5-N0-WY80FC TD217-M4X0.5-N0-WY80FC TD217-M4X0.5-N0-WY80FC

TD217-M4X0.5-N0-WY80FC

Walter
Артикул: 8606219
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
Vaporisiert
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
Delivery state valid from
12/1/2024
DIN
ZYL00282105
FamilyProducts
HSS-E machine taps TD217
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
WY80FC
HAND Cutting direction
R - Right
ID Technical product number
8606219
Interface codes
J6 / J61
ISO
ZYL21F2800h$09
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LCF Length chip flute
19.2 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0028
LOC-03 DCONMS Diameter
2.8 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21F2800h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00282105
LS Shank length
21 mm
Name Identifying order number
TD217-M4X0.5-N0-WY80FC
NOF Flute count
3
OAL Overall length
64.76 mm
OVERHANG LENGTH Overhang length
44.76 mm
PLCD Gate diameter
3.48 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
DIN 374
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
2.25 mm
TCTR Thread tolerance class
6HX
TD Thread diameter
4 mm
THFT Thread form type
MF
THL Thread cutting part length
12 mm
THOD Thread designation
MF4x0.5-6HX
THSTS Thread starts
1
TP Thread pitch
0.5 mm
TTPID Tap type identifier
1 - Machine tap
Working process
BG - Tapping
WT Weight of item
0.004 kg
