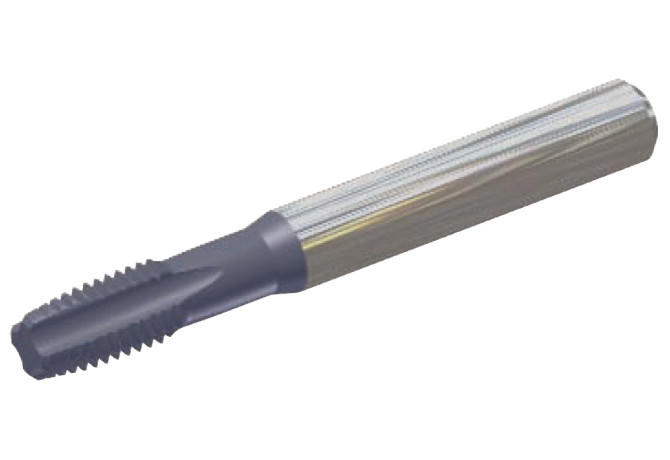

Главная Каталог продукции Toolunited 13 301-01 - Thread cutting tap with offset shank T461NC6250-11R3B KC7512

T461NC6250-11R3B KC7512

T461NC6250-11R3B KC7512 T461NC6250-11R3B KC7512 T461NC6250-11R3B KC7512

T461NC6250-11R3B KC7512

Kennametal
Артикул: 3527416
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
TiN+CrC/C
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
11/1/2008
DIN
ZYL05630135
FamilyProducts
T461-inch, Straight Flute, Plug Chamfer /w Coolant
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
KC7512
HAND Cutting direction
R - Right
ID Technical product number
3527416
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
0563
LOC-03 DCONMS Diameter
14.2875 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL05630135
LS Shank length
42.1132 mm
Materials
N
Name Identifying order number
T461NC6250-11R3B KC7512
NOF Flute count
4
OAL Overall length
109.982 mm
TCDCONMS ISO-tolerance class shank diameter
h6
TCTR Thread tolerance class
3B
TDFR Thread diameter nominal fraction
5/8 in
TDIN Thread diameter nominal inch
0.625 in
THFT Thread form type
NC/UNC
THL Thread cutting part length
27.9908 mm
THOD Thread designation
NC/UNC5/8-11-3B
TPI Threads per inch
11 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
BG - Tapping
