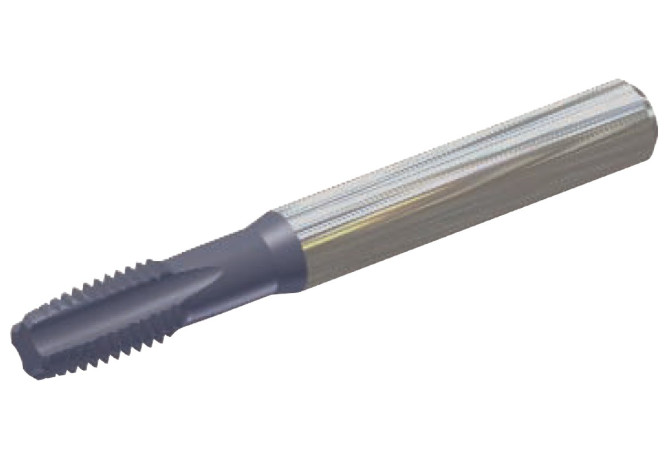

T461M100X160R6H KC7512

T461M100X160R6H KC7512 T461M100X160R6H KC7512 T461M100X160R6H KC7512

T461M100X160R6H KC7512

Kennametal
Артикул: 3527419
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
TiN+CrC/C
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
11/1/2008
DIN
ZYL01000115
FamilyProducts
T461-Metric, Straight Flute, Plug Chamfer, Coolant
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
KC7512
HAND Cutting direction
R - Right
ID Technical product number
3527419
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01000115

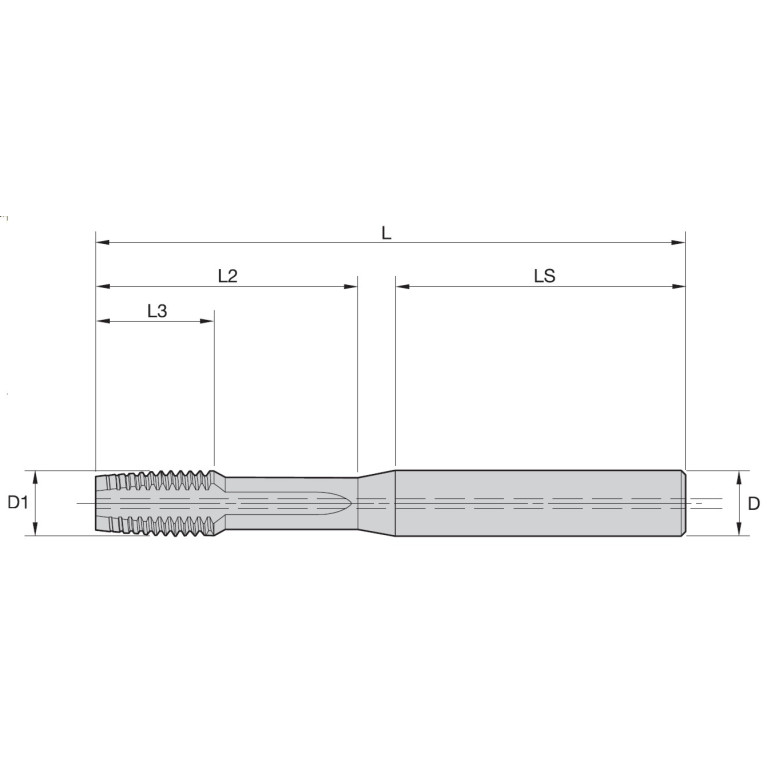

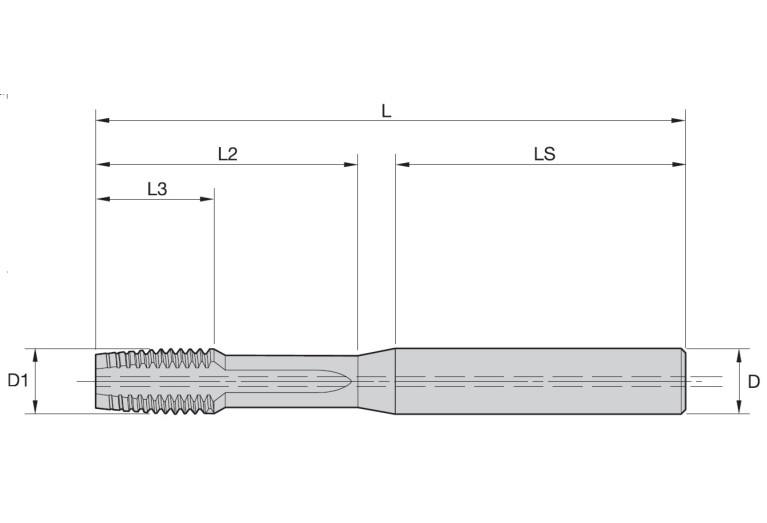

LS Shank length
44 mm
Materials
N
Name Identifying order number
T461M100X160R6H KC7512
NOF Flute count
3
OAL Overall length
90 mm
TCDCONMS ISO-tolerance class shank diameter
h6
TCTR Thread tolerance class
6H
TD Thread diameter
10 mm
THFT Thread form type
M
THL Thread cutting part length
18 mm
THOD Thread designation
M10x1.5-6H
TP Thread pitch
1.5 mm
TTPID Tap type identifier
1 - Machine tap
Working process
BG - Tapping
