Главная Каталог продукции Toolunited 13 301-01 - Thread cutting tap with offset shank SYU20YUEEXJ

SYU20YUEEXJ

SYU20YUEEXJ SYU20YUEEXJ

SYU20YUEEXJ

Yamawa
Артикул: SYU20YUEEXJ
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
Oxidizing
COMPC Company code
YMW - Yamawa
CXSC Coolant exit style code
0 - Without coolant exit
Delivery state valid from
6/1/2024
DIN
ZYL02402105
DRVS Drive size
19 mm
FamilyProducts
HVSP P6 1 1/4-7UNC
FHA Flute helix angle
45 Degree
FHH Flute helix hand
R - Hand of helix right
GRDPRIO Standard designation of the grade main application
HSS
HAND Cutting direction
R - Right
ID Identifying order number
SYU20YUEEXJ
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0240
LOC-03 DCONMS Diameter
24 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$08
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02402105

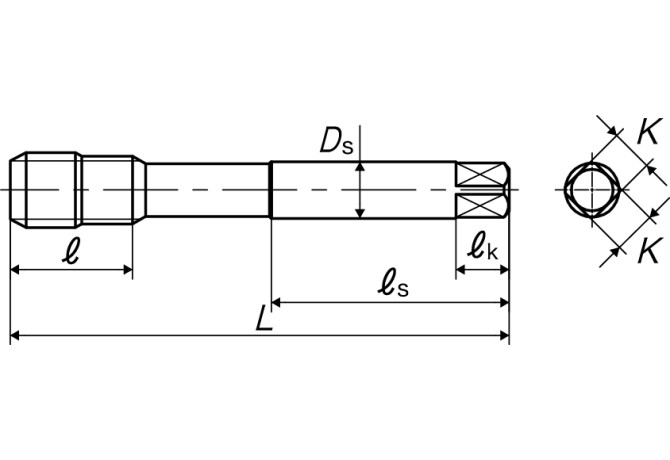

LS Shank length
92 mm
Materials
P,M,N,H
NOF Flute count
4
OAL Overall length
180 mm
OVERHANG LENGTH Overhang length
97.2 mm
PLCD Gate diameter
27.649 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
JIS
TCDCONMS ISO-tolerance class shank diameter
h8
TCL Tap chamfer length
9.071 mm
TCTR Thread tolerance class
P6
TD Thread diameter
31.75 mm
TDFR Thread diameter nominal fraction
1 1/4 in
THFT Thread form type
UNC
THL Thread cutting part length
44 mm
THOD Thread designation
UNC1 1/4-7-P6
TPI Threads per inch
7 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
BGS - Thread cutting, blind hole
WT Weight of item
0.638 kg
