Главная Каталог продукции Toolunited 13 301-01 - Thread cutting tap with offset shank SSU18SYEEXCJ

SSU18SYEEXCJ

SSU18SYEEXCJ SSU18SYEEXCJ

SSU18SYEEXCJ

Yamawa
Артикул: SSU18SYEEXCJ
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
Oxidizing
COMPC Company code
YMW - Yamawa
CXSC Coolant exit style code
0 - Without coolant exit
Delivery state valid from
6/1/2024
DIN
ZYL04292125
DRVS Drive size
17.069 mm
FamilyProducts
HVSP 2BX 1 1/8-12UNF
FHA Flute helix angle
45 Degree
FHH Flute helix hand
R - Hand of helix right
GRDPRIO Standard designation of the grade main application
HSS
HAND Cutting direction
R - Right
ID Identifying order number
SSU18SYEEXCJ
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
0429
LOC-03 DCONMS Diameter
10.8966 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$08
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04292125

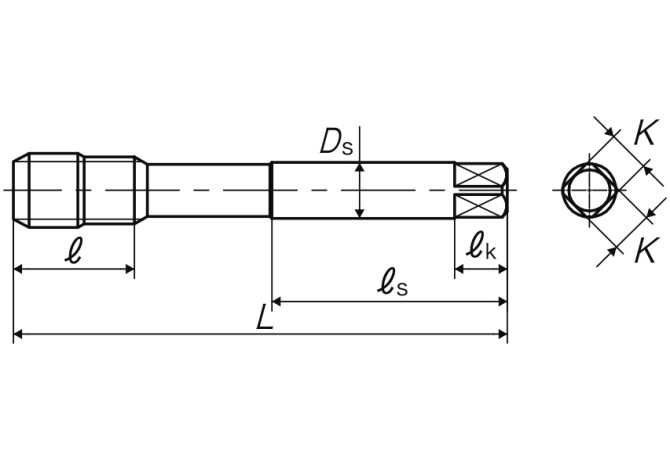

LS Shank length
91.999 mm
Materials
P,M,N,H
NOF Flute count
4
OAL Overall length
180.01 mm
OVERHANG LENGTH Overhang length
96.52 mm
PLCD Gate diameter
26.162 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
ANSI
TCDCONMS ISO-tolerance class shank diameter
h8
TCL Tap chamfer length
5.283 mm
TCTR Thread tolerance class
2BX
TDFR Thread diameter nominal fraction
1 1/8 in
TDIN Thread diameter nominal inch
1.125 in
THFT Thread form type
UNF
THL Thread cutting part length
43.993 mm
THOD Thread designation
UNF1 1/8-12-2BX
TPI Threads per inch
12 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
BGS - Thread cutting, blind hole
WT Weight of item
0.483 kg
