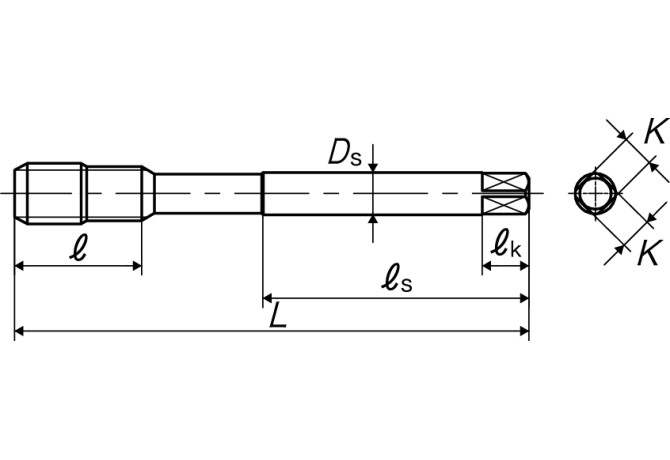

Главная Каталог продукции Toolunited 13 301-01 - Thread cutting tap with offset shank SS014Q9EEXJ

SS014Q9EEXJ

SS014Q9EEXJ SS014Q9EEXJ

SS014Q9EEXJ

Yamawa
Артикул: SS014Q9EEXJ
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
Oxidizing
COMPC Company code
YMW - Yamawa
CXSC Coolant exit style code
0 - Without coolant exit
Delivery state valid from
10/1/2024
DIN
ZYL01092105
DRVS Drive size
8.17 mm
FamilyProducts
HVSP D9 M14X2
FHA Flute helix angle
45 Degree
FHH Flute helix hand
R - Hand of helix right
GRDPRIO Standard designation of the grade main application
HSS
HAND Cutting direction
R - Right
ID Identifying order number
SS014Q9EEXJ
Interface codes
J6 / J61
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LCF Length chip flute
53 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0109
LOC-03 DCONMS Diameter
10.9 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$08
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01092105
LS Shank length
56 mm
Materials
P,M,N,H
NOF Flute count
3
OAL Overall length
110 mm
OVERHANG LENGTH Overhang length
59.6 mm
PLCD Gate diameter
11.7 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
ANSI
TCDCONMS ISO-tolerance class shank diameter
h8
TCL Tap chamfer length
5 mm
TCTR Thread tolerance class
D9
TD Thread diameter
14 mm
THFT Thread form type
M
THL Thread cutting part length
26 mm
THOD Thread designation
M14×2-D9
TP Thread pitch
2 mm
TTPID Tap type identifier
1 - Machine tap
Working process
BGS - Thread cutting, blind hole
WT Weight of item
0.084 kg
