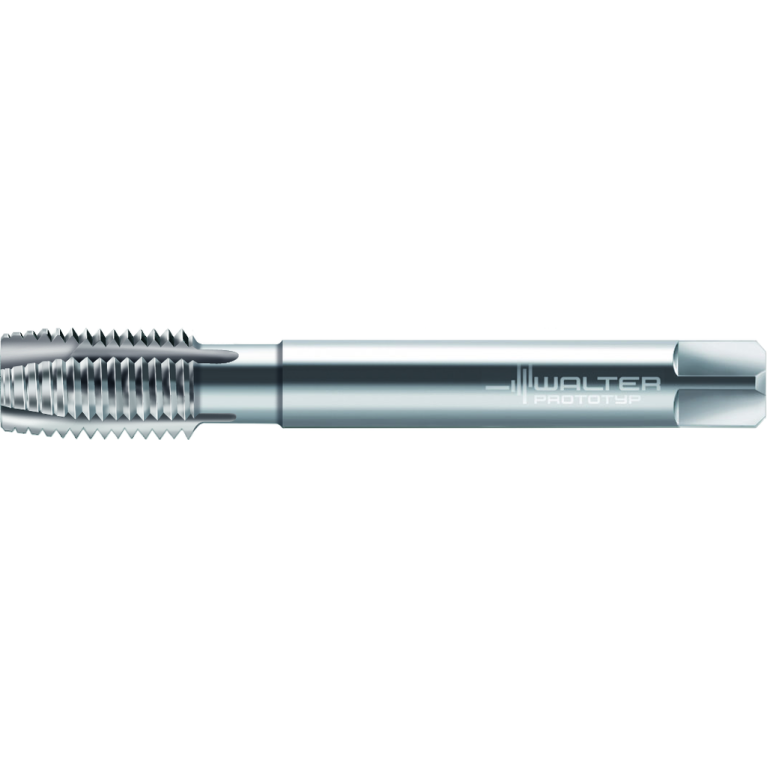

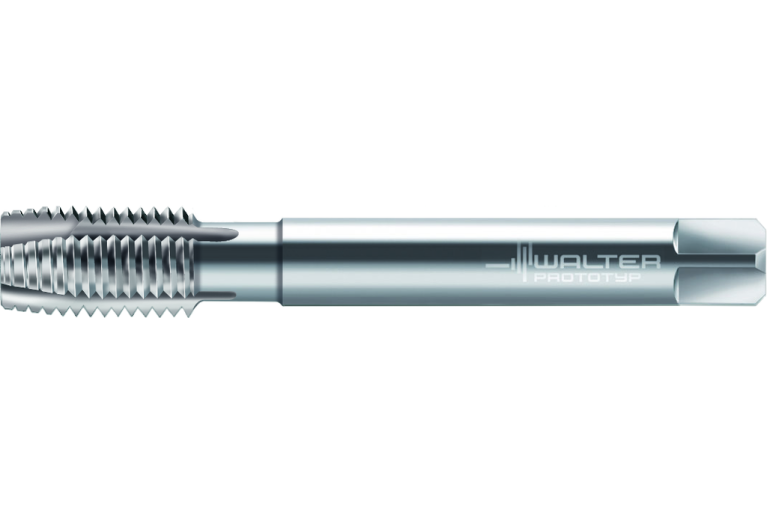

Главная Каталог продукции Toolunited 13 301-01 - Thread cutting tap with offset shank P233509-EGUNF7/16

P233509-EGUNF7/16

P233509-EGUNF7/16 P233509-EGUNF7/16 P233509-EGUNF7/16

P233509-EGUNF7/16

Walter
Артикул: 6149474
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
ohne
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00902105
FamilyProducts
HSS-E machine taps
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
HAND Cutting direction
R - Right
ID Technical product number
6149474
Interface codes
J6 / J61
ISO
ZYL21F9000h$09
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0090
LOC-03 DCONMS Diameter
9 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21F9000h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00902105
LS Shank length
30 mm
Materials
P,N,O
Name Identifying order number
P233509-EGUNF7/16
NOF Flute count
4
OAL Overall length
100 mm
PLCD Gate diameter
11.37 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
DIN 2184-1
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
5.72 mm
TCTR Thread tolerance class
3B
TDFR Thread diameter nominal fraction
7/16 in
TDIN Thread diameter nominal inch
0.5025 in
THFT Thread form type
EGUNF
THL Thread cutting part length
21 mm
TPI Threads per inch
20 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
EGI - Threading, internal
WT Weight of item
0.059 kg
