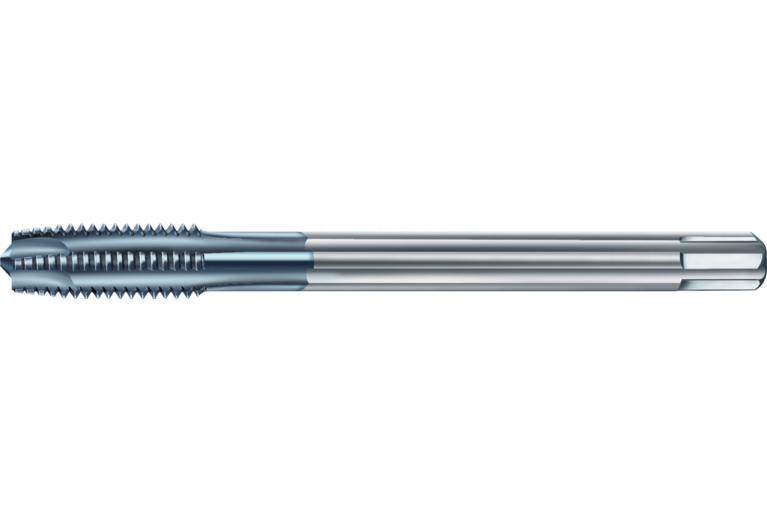

8126006-M12X1

Артикул: 5344203

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

8 - With coolant supply (entry), axial groove at shank

COMPC Company code

W - Walter

CXSC Coolant exit style code

7 - With coolant supply (discharge), axial groove at shank

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL00902115

FamilyProducts

Solid carbide machine taps

FHA Flute helix angle

0 Degree

GRDMFG Grade manufacturers designation

TICN

HAND Cutting direction

R - Right

ID Technical product number

5344203

Interface codes

J6 / J61

ISO

ZYL21F9000h$06

ISYC Subclass

301-01 - Thread cutting tap with offset shank

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0090

LOC-03 DCONMS Diameter

9 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03 ISO

ZYL21F9000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00902115

Name Identifying order number

8126006-M12X1

NOF Flute count

OAL Overall length

102.02 mm

PLCD Gate diameter

10.95 mm

STDNO Standard

DIN 374

TCDCONMS ISO-tolerance class shank diameter

TCL Tap chamfer length

5 mm

TCTR Thread tolerance class

6HX

TD Thread diameter

12 mm

THFT Thread form type

THL Thread cutting part length

21 mm

THOD Thread designation

MF12x1-6HX

TP Thread pitch

1 mm

TTPID Tap type identifier

1 - Machine tap

Working process

EGI - Threading, internal

WT Weight of item

0.095 kg
