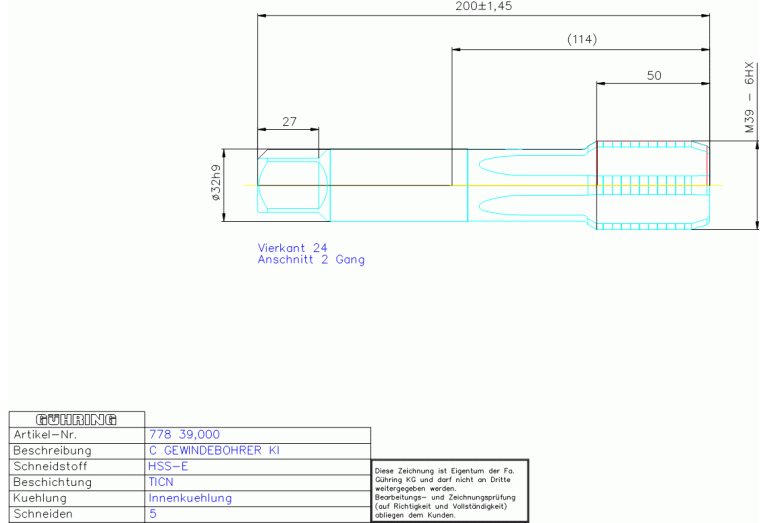

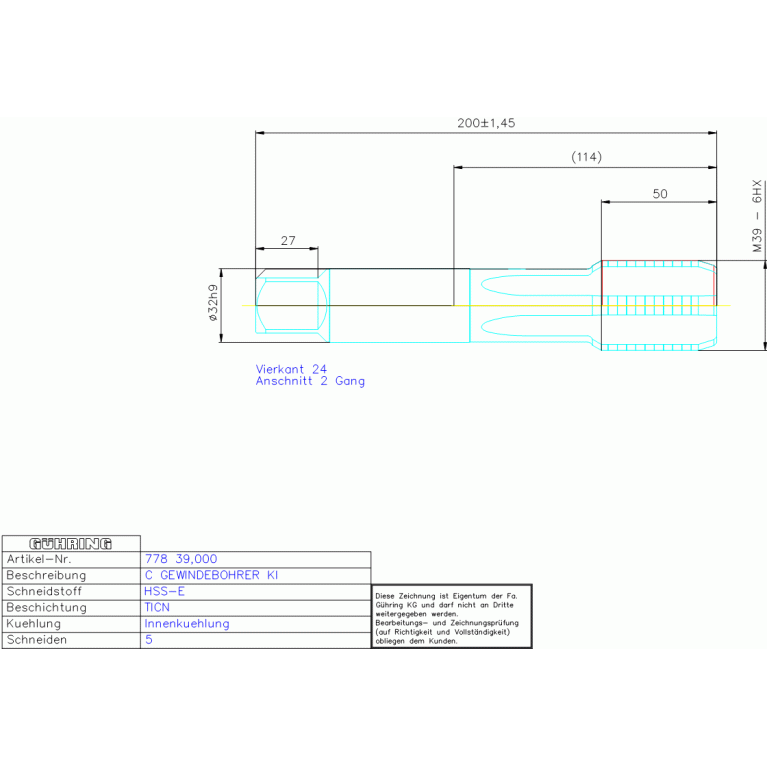

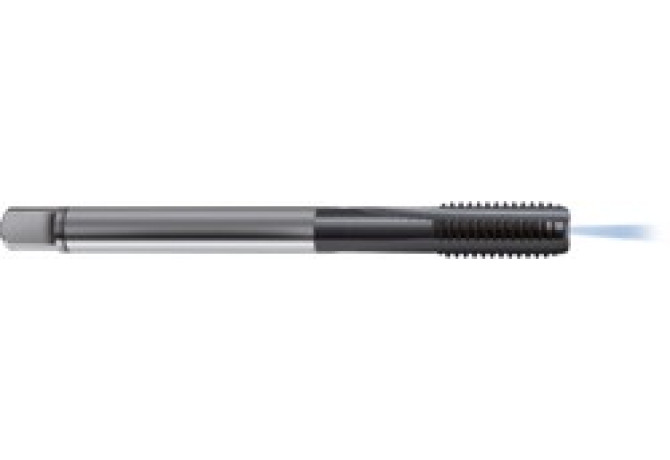

Главная Каталог продукции Toolunited 13 301-01 - Thread cutting tap with offset shank 778 39.000

778 39.000

778 39.000 778 39.000 778 39.000 778 39.000

778 39.000

Gühring
Артикул: 778 39.000
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
TICN
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
H
CRCLMFG Chip removal class mfg
GS
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCONMSLD Shank diameter lower limit
-0.062 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/18/2024
DIN
ZYL03202115
DRVS Drive size
24 mm
FamilyProducts
HSSE TICN KI-GBO M39 DIN376 HC ENERGY
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03202115
LS Shank length
92.8 mm
Name Identifying order number
778 39.000
NOF Flute count
5
OAL Overall length
200 mm
PLCD Gate diameter
34.85 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 376
TCL Tap chamfer length
8 mm
TCTR Thread tolerance class
6HX
TD Thread diameter
39 mm
THFT Thread form type
M
THL Thread cutting part length
50 mm
THOD Thread designation
M39x4-6HX
TP Thread pitch
4 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
1.11 kg
