3102103181

3102103181

Yamawa
Артикул: 3102103181
В наличии
В корзину
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
YMW - Yamawa
CXSC Coolant exit style code
0 - Without coolant exit
Delivery state valid from
6/1/2024
DIN
ZYL01802105
DRVS Drive size
14.5 mm
FamilyProducts
VUPO 376 2BX 7/8-9UNC coated tap
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDPRIO Standard designation of the grade main application
HSS-P
HAND Cutting direction
R - Right
ID Identifying order number
3102103181
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0180
LOC-03 DCONMS Diameter
18 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$08
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01802105

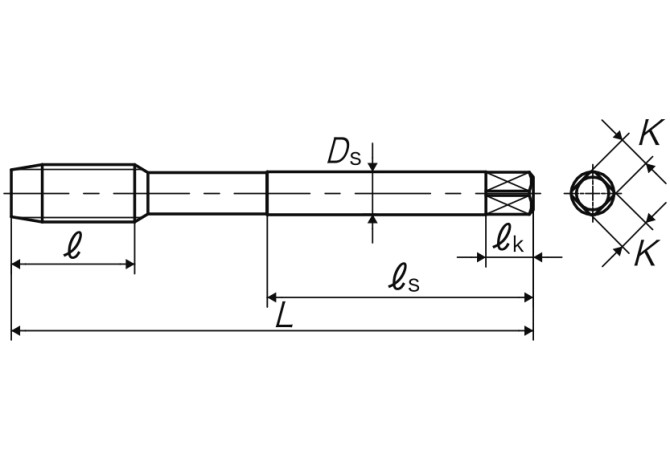

LS Shank length
71 mm
Materials
P,M,K,N,H
NOF Flute count
3
OAL Overall length
140 mm
OVERHANG LENGTH Overhang length
76.1 mm
PLCD Gate diameter
19.035 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
DIN376
TCDCONMS ISO-tolerance class shank diameter
h8
TCL Tap chamfer length
14.111 mm
TCTR Thread tolerance class
2BX
TD Thread diameter
22.225 mm
TDFR Thread diameter nominal fraction
7/8 in
THFT Thread form type
UNC
THL Thread cutting part length
33 mm
THOD Thread designation
UNC7/8-9-2BX
TPI Threads per inch
9 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
BGD - Thread cutting, through hole
WT Weight of item
0.285 kg
