Главная Каталог продукции Toolunited 13 301-01 - Thread cutting tap with offset shank 3102103085

3102103085

3102103085 3102103085

3102103085

Yamawa
Артикул: 3102103085
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
YMW - Yamawa
CXSC Coolant exit style code
0 - Without coolant exit
Delivery state valid from
6/1/2024
DIN
ZYL00702105
DRVS Drive size
5.5 mm
FamilyProducts
VUPO 374 2BX 3/8-24UNF coated tap
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDPRIO Standard designation of the grade main application
HSS-P
HAND Cutting direction
R - Right
ID Identifying order number
3102103085
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0070
LOC-03 DCONMS Diameter
7 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$08
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00702105

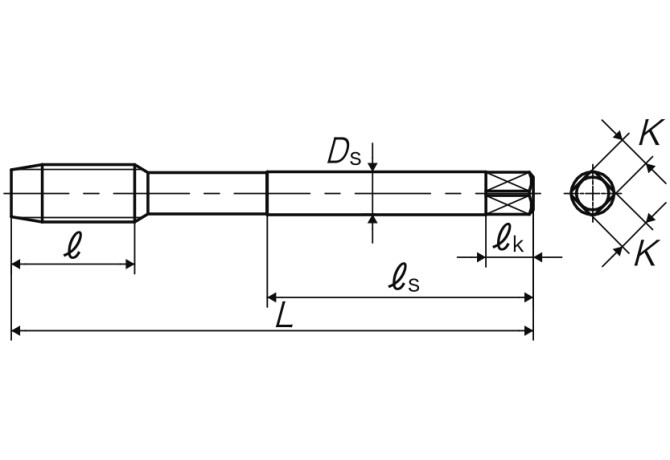

LS Shank length
51 mm
Materials
P,M,K,N,H
NOF Flute count
3
OAL Overall length
100 mm
OVERHANG LENGTH Overhang length
54.1 mm
PLCD Gate diameter
8.329 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
DIN374
TCDCONMS ISO-tolerance class shank diameter
h8
TCL Tap chamfer length
5.291 mm
TCTR Thread tolerance class
2BX
TD Thread diameter
9.525 mm
TDFR Thread diameter nominal fraction
3/8 in
THFT Thread form type
UNF
THL Thread cutting part length
23 mm
THOD Thread designation
UNF3/8-24-2BX
TPI Threads per inch
24 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
BGD - Thread cutting, through hole
WT Weight of item
0.03 kg
