Главная Каталог продукции Toolunited 13 301-01 - Thread cutting tap with offset shank 30063-M8

30063-M8

30063-M8 30063-M8 30063-M8

30063-M8

Walter
Артикул: 5079130
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
Vaporisiert
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00602105
FamilyProducts

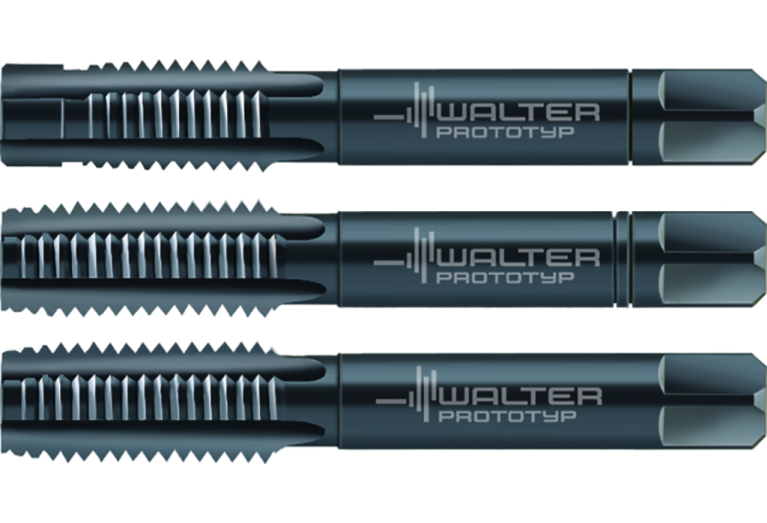

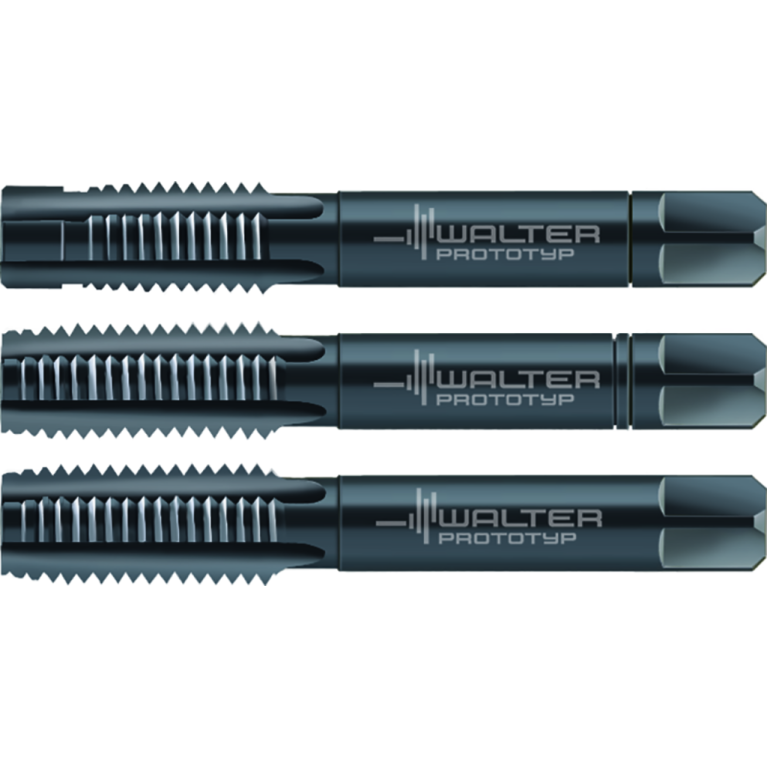

HSS-E hand-held tap set
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
VAP
HAND Cutting direction
R - Right
ID Technical product number
5079130
Interface codes
J6 / J61
ISO
ZYL21F6000h$09
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21F6000h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00602105
LS Shank length
27 mm
Materials
P,M
Name Identifying order number
30063-M8
NOF Flute count
3
OAL Overall length
64.57 mm
PLCD Gate diameter
6.69 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 352
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
3.12 mm
TCTR Thread tolerance class
6HX
TD Thread diameter
8 mm
THFT Thread form type
M
THL Thread cutting part length
19 mm
THOD Thread designation
M8x1.25-6HX
TP Thread pitch
1.25 mm
TTPID Tap type identifier
2 - Hand tap
Working process
EGI - Threading, internal
WT Weight of item
0.053 kg
