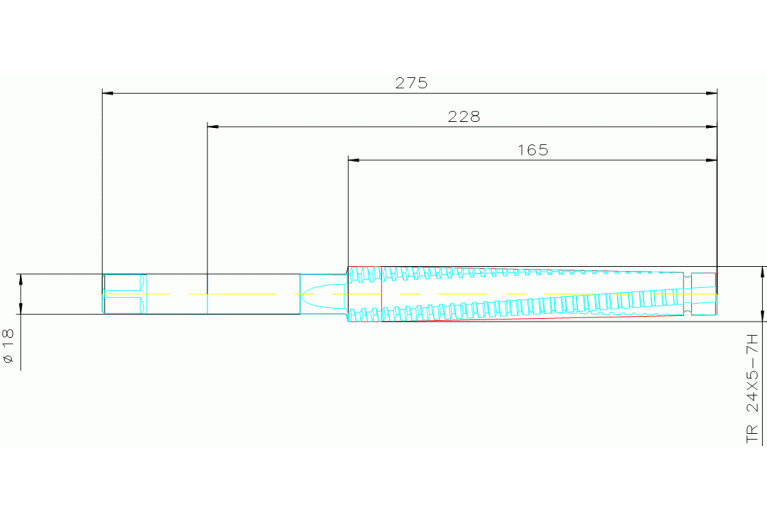

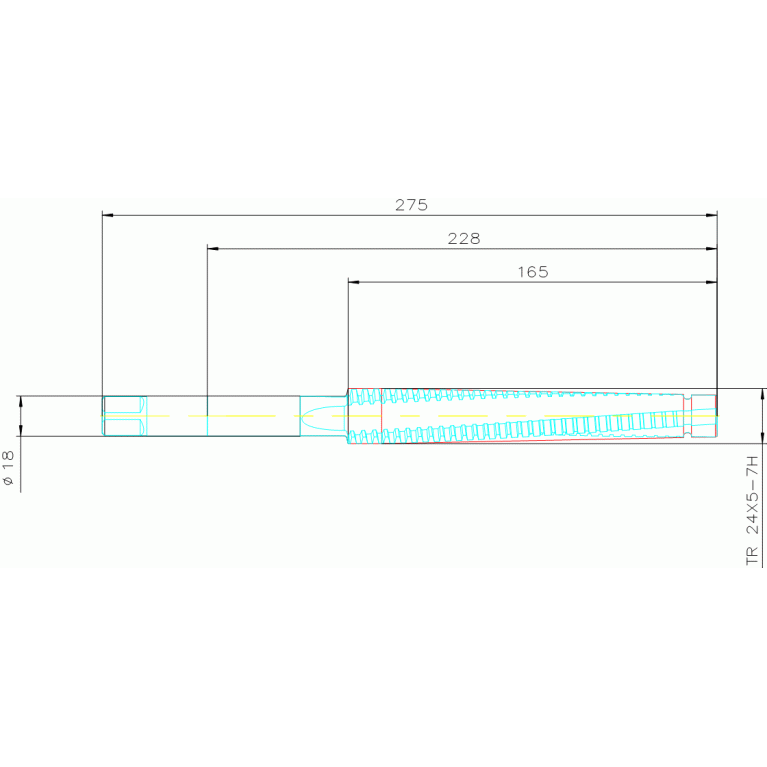

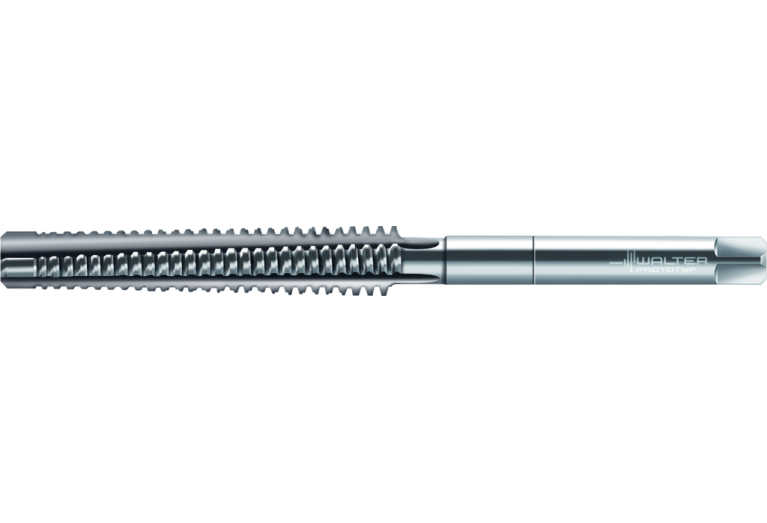

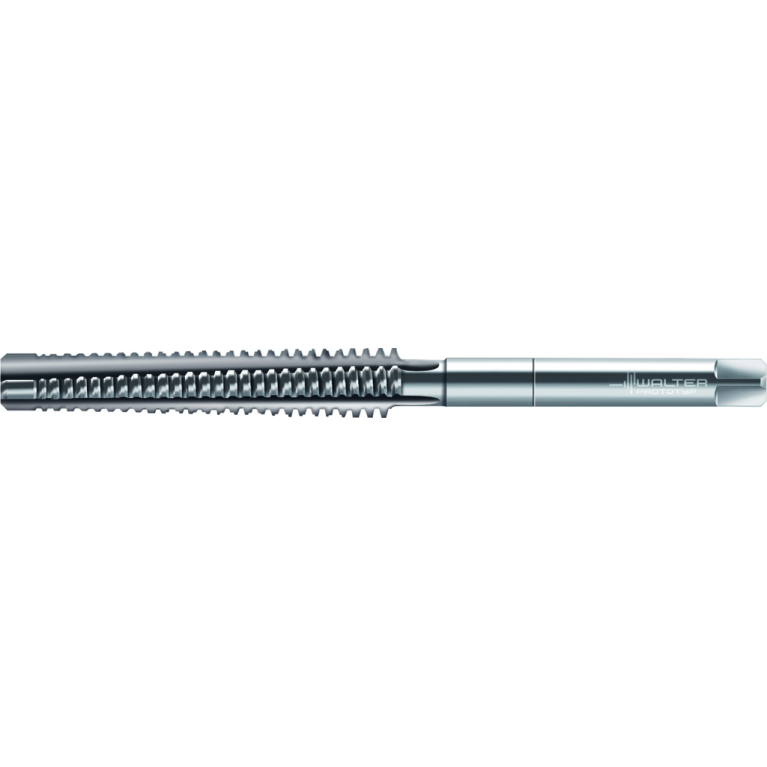

Главная Каталог продукции Toolunited 13 301-01 - Thread cutting tap with offset shank 29100-TR24X5

29100-TR24X5

29100-TR24X5 29100-TR24X5 29100-TR24X5 29100-TR24X5

29100-TR24X5

Walter
Артикул: 5079073
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
ohne
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL01802105
FamilyProducts
HSS-E trapezoidal taps
FHA Flute helix angle
5 Degree
FHH Flute helix hand
L - Hand of helix left
HAND Cutting direction
R - Right
ID Technical product number
5079073
Interface codes
J6 / J61
ISO
ZYL21G1800h$09
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0180
LOC-03 DCONMS Diameter
18 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21G1800h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01802105

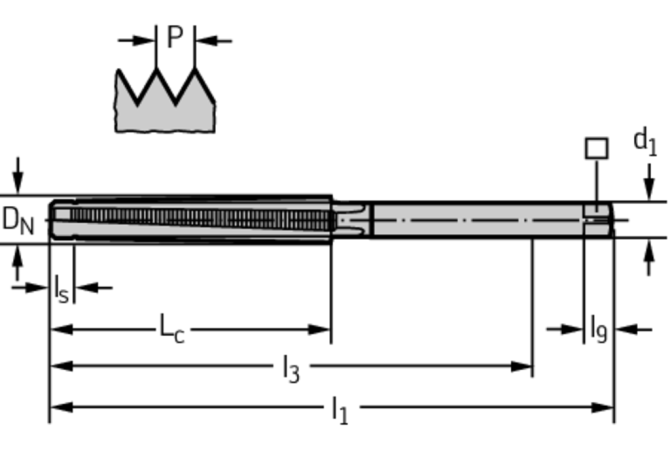

LS Shank length
36 mm
Materials
P,K,N,O
Name Identifying order number
29100-TR24X5
NOF Flute count
3
OAL Overall length
275 mm
PLCD Gate diameter
19.3 mm
STDNO Standard
PWZ-NORM
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
120 mm
TCTR Thread tolerance class
7H
TD Thread diameter
24 mm
THFT Thread form type
TR
THL Thread cutting part length
150 mm
THOD Thread designation
TR24x5-7H
TP Thread pitch
5 mm
TTPID Tap type identifier
5 - Nut tap
Working process
EGI - Threading, internal
WT Weight of item
0.481 kg
