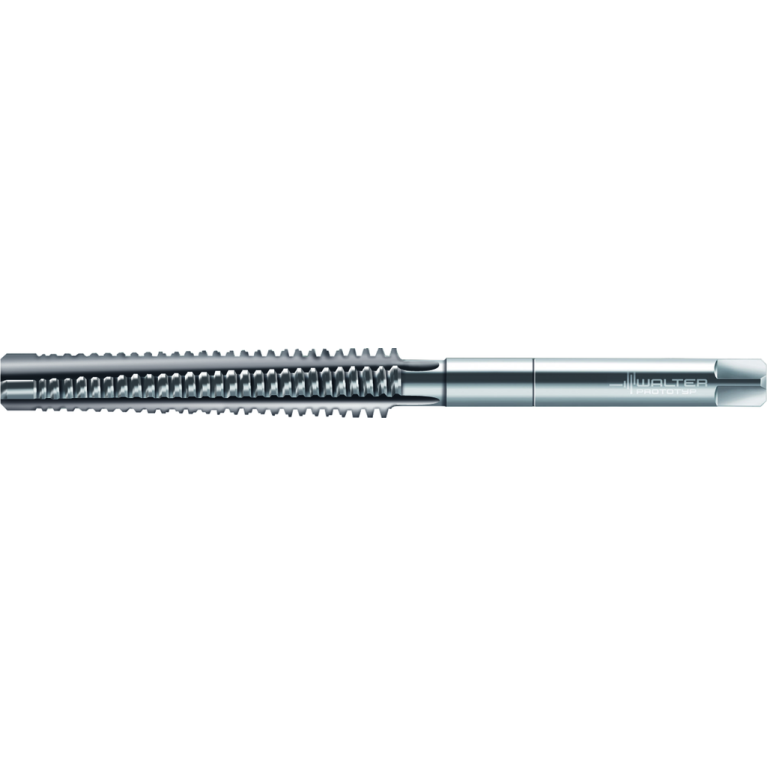

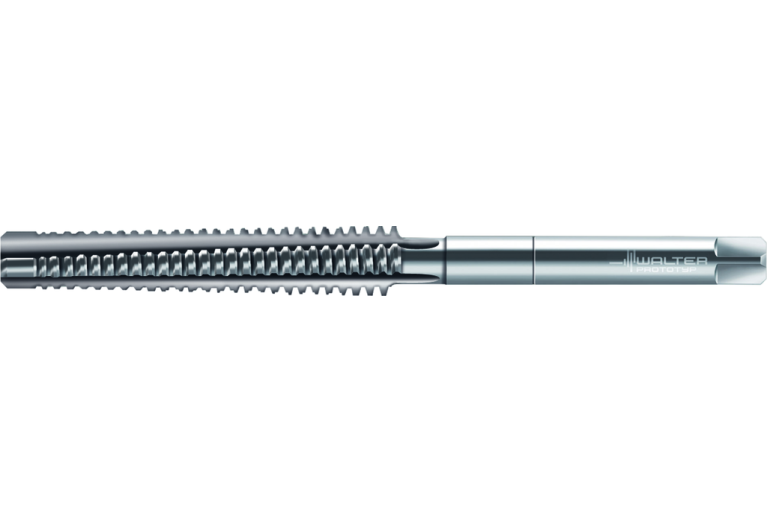

Главная Каталог продукции Toolunited 13 301-01 - Thread cutting tap with offset shank 29100-TR14X3

29100-TR14X3

29100-TR14X3 29100-TR14X3 29100-TR14X3

29100-TR14X3

Walter
Артикул: 5079067
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
ohne
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL01002105
FamilyProducts
HSS-E trapezoidal taps
FHA Flute helix angle
5 Degree
FHH Flute helix hand
L - Hand of helix left
HAND Cutting direction
R - Right
ID Technical product number
5079067
Interface codes
J6 / J61
ISO
ZYL21G1000h$09
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21G1000h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01002105
LS Shank length
30 mm
Materials
P,K,N,O
Name Identifying order number
29100-TR14X3
NOF Flute count
3
OAL Overall length
180 mm
PLCD Gate diameter
11.3 mm
STDNO Standard
PWZ-NORM
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
72 mm
TCTR Thread tolerance class
7H
TD Thread diameter
14 mm
THFT Thread form type
TR
THL Thread cutting part length
90 mm
THOD Thread designation
TR14x3-7H
TP Thread pitch
3 mm
TTPID Tap type identifier
5 - Nut tap
Working process
EGI - Threading, internal
WT Weight of item
0.105 kg
