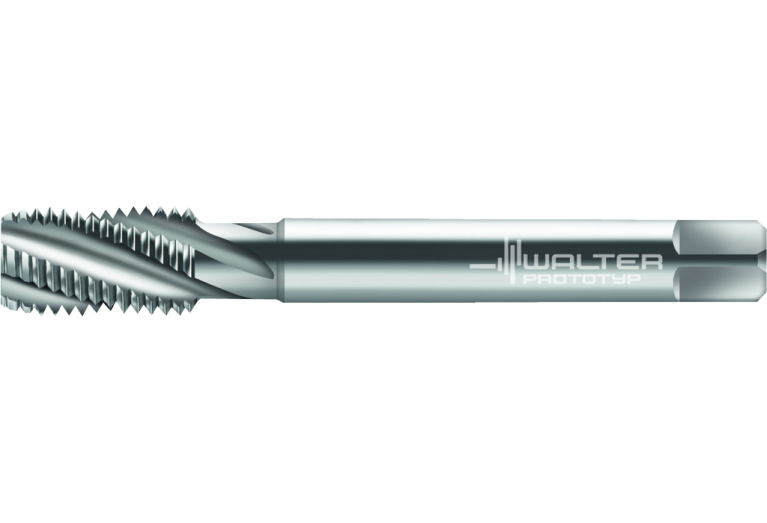

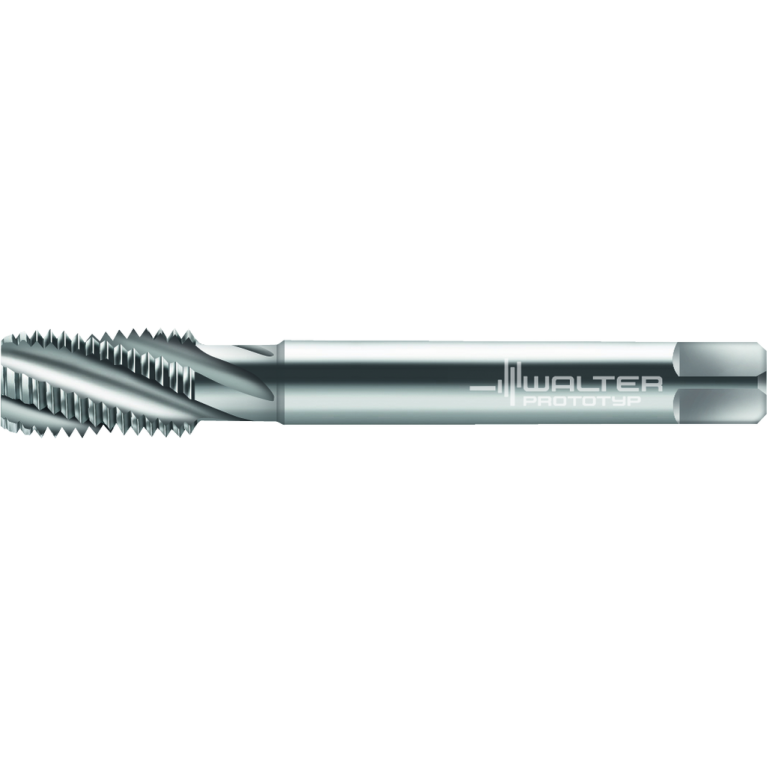

Главная Каталог продукции Toolunited 13 301-01 - Thread cutting tap with offset shank 234579-EGUNF3/8

234579-EGUNF3/8

234579-EGUNF3/8 234579-EGUNF3/8 234579-EGUNF3/8

234579-EGUNF3/8

Walter
Артикул: 5078628
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
ohne
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00802105
FamilyProducts
HSS-E PM machine taps
FHA Flute helix angle
25 Degree
FHH Flute helix hand
R - Hand of helix right
HAND Cutting direction
R - Right
ID Technical product number
5078628
Interface codes
J6 / J61
ISO
ZYL21F8000h$09
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21F8000h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00802105
LS Shank length
27 mm
Materials
P,K,N,S
Name Identifying order number
234579-EGUNF3/8
NOF Flute count
4
OAL Overall length
100 mm
PLCD Gate diameter
9.74 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 2184-1
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
2.97 mm
TCTR Thread tolerance class
3B
TDFR Thread diameter nominal fraction
3/8 in
TDIN Thread diameter nominal inch
0.4291 in
THFT Thread form type
EGUNF
THL Thread cutting part length
20 mm
TPI Threads per inch
24 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
EGI - Threading, internal
WT Weight of item
0.046 kg
