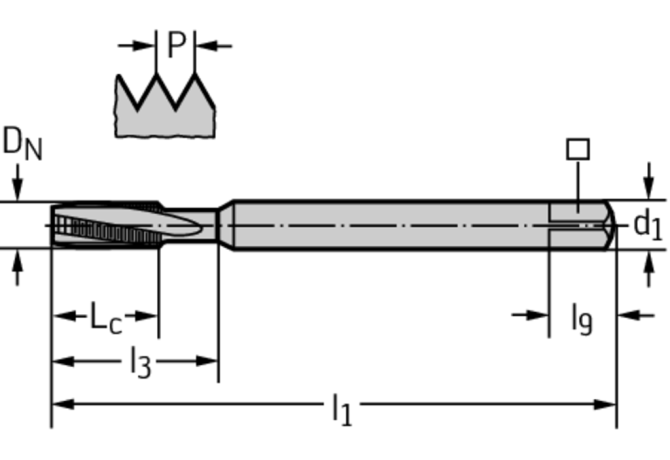

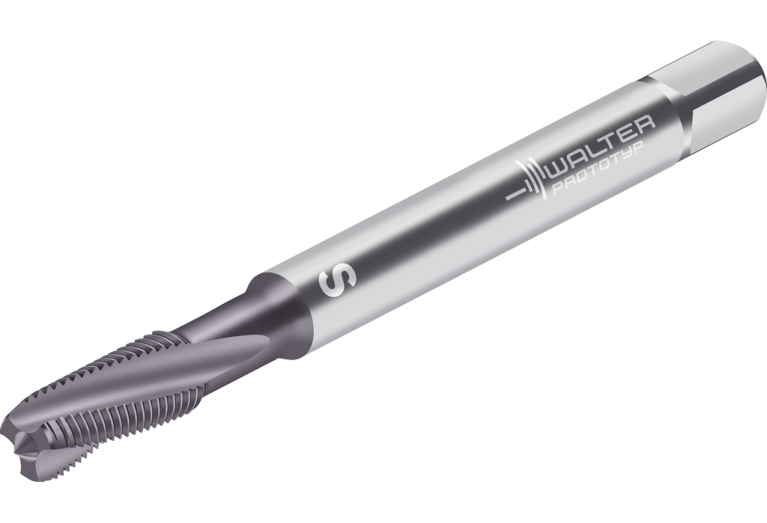

Главная Каталог продукции Toolunited 13 301-01 - Thread cutting tap with offset shank 2340663-UNJF9/16

2340663-UNJF9/16

2340663-UNJF9/16 2340663-UNJF9/16 2340663-UNJF9/16

2340663-UNJF9/16

Walter
Артикул: 8540545
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
Al2O3
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
Delivery state valid from
6/1/2024
DIN
ZYL01102105
FamilyProducts
HSS-E PM machine taps
FHA Flute helix angle
15 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
ACN
HAND Cutting direction
R - Right
ID Technical product number
8540545
Interface codes
J6 / J61
ISO
ZYL21G1100h$09
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0110
LOC-03 DCONMS Diameter
11 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21G1100h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01102105
LS Shank length
33 mm
Materials
S
Name Identifying order number
2340663-UNJF9/16
NOF Flute count
4
OAL Overall length
100 mm
OVERHANG LENGTH Overhang length
71 mm
PLCD Gate diameter
12.81 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
~DIN 2184-1
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
3.95 mm
TCTR Thread tolerance class
3B
TDFR Thread diameter nominal fraction
9/16 in
TDIN Thread diameter nominal inch
0.5625 in
THFT Thread form type
UNJF
THL Thread cutting part length
25 mm
THOD Thread designation
UNJF9/16-18-3B
TPI Threads per inch
18 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
BG - Tapping
WT Weight of item
0.001 kg
