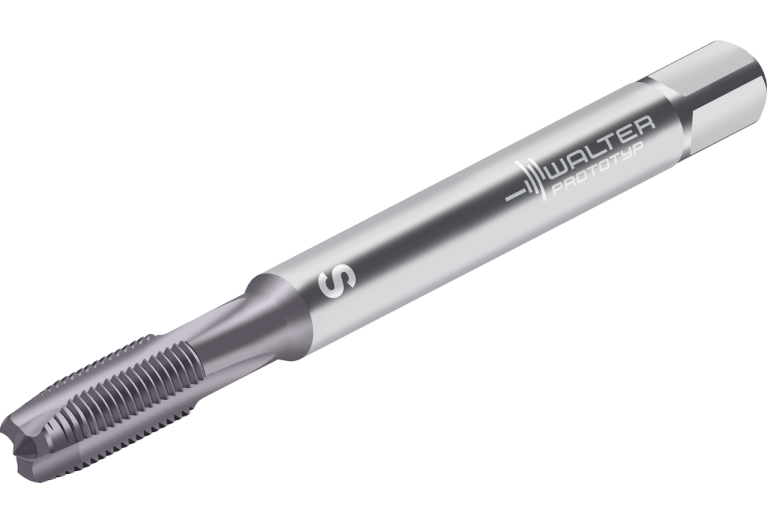

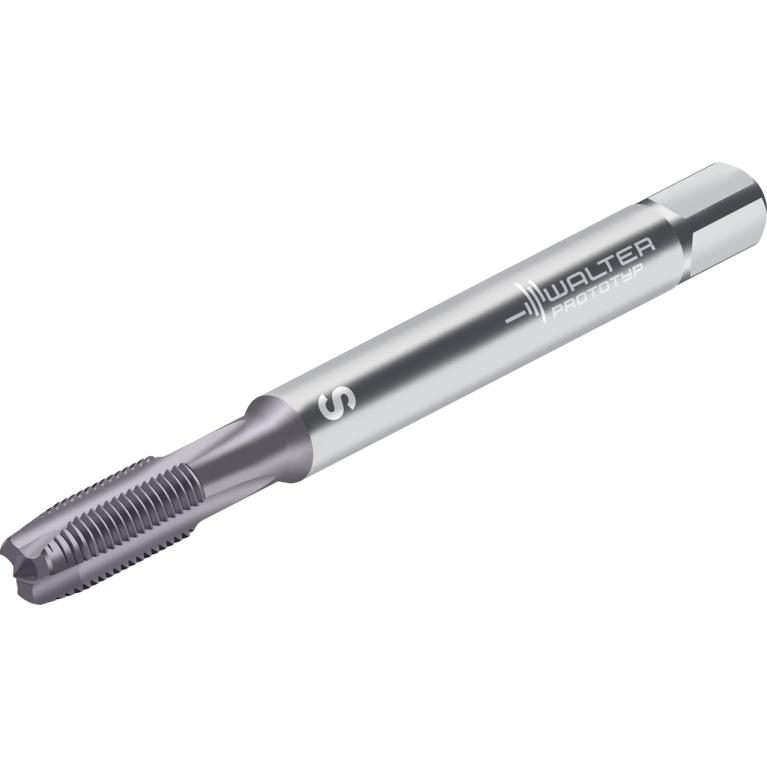

Главная Каталог продукции Toolunited 13 301-01 - Thread cutting tap with offset shank 2320763-UNJF7/8

2320763-UNJF7/8

2320763-UNJF7/8 2320763-UNJF7/8 2320763-UNJF7/8

2320763-UNJF7/8

Walter
Артикул: 8540869
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
Al2O3
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
Delivery state valid from
6/1/2024
DIN
ZYL01802105
FamilyProducts
HSS-E PM machine taps
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
ACN
HAND Cutting direction
R - Right
ID Technical product number
8540869
Interface codes
J6 / J61
ISO
ZYL21G1800h$09
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0180
LOC-03 DCONMS Diameter
18 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21G1800h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01802105
LS Shank length
36 mm
Materials
S
Name Identifying order number
2320763-UNJF7/8
NOF Flute count
4
OAL Overall length
125 mm
OVERHANG LENGTH Overhang length
78 mm
PLCD Gate diameter
20.32 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
~DIN 2184-1
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
8.16 mm
TCTR Thread tolerance class
3B
TDFR Thread diameter nominal fraction
7/8 in
TDIN Thread diameter nominal inch
0.875 in
THFT Thread form type
UNJF
THL Thread cutting part length
30 mm
THOD Thread designation
UNJF7/8-14-3B
TPI Threads per inch
14 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
BG - Tapping
WT Weight of item
0.001 kg
