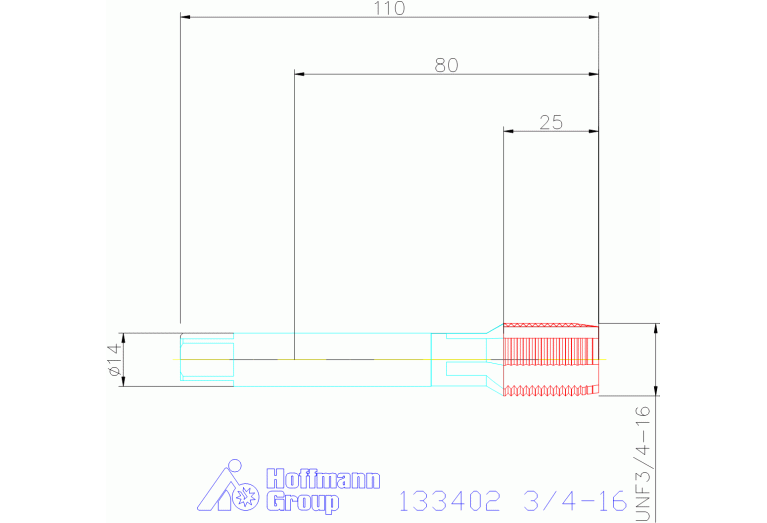

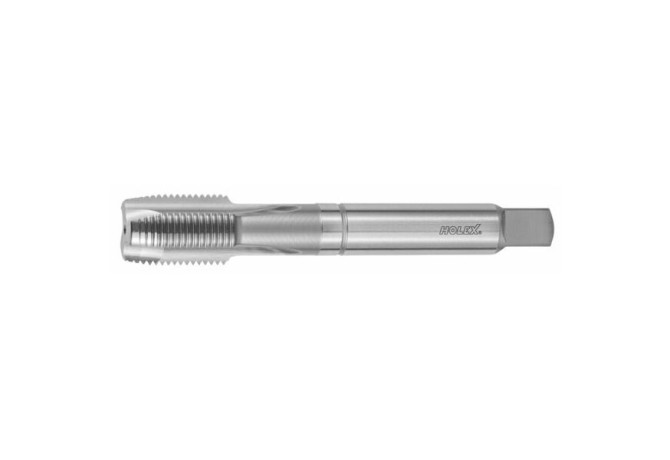

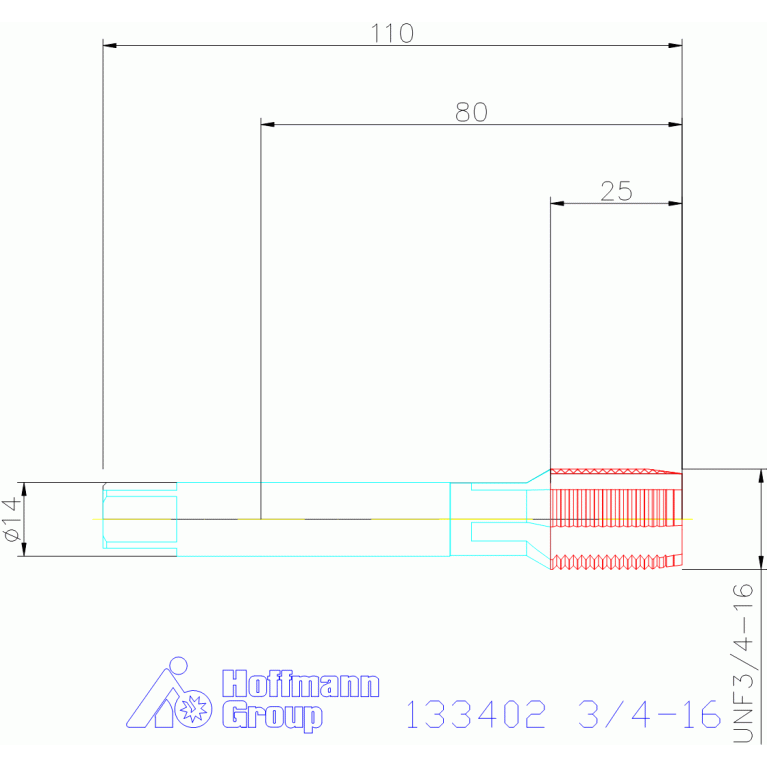

Главная Каталог продукции Toolunited 13 301-01 - Thread cutting tap with offset shank 133402 3/4-16

133402 3/4-16

133402 3/4-16 133402 3/4-16 133402 3/4-16

133402 3/4-16

Hoffmann Group
Артикул: 133402 3/4-16
В наличии
В корзину
Описание
Характеристики
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL01402105
FamilyProducts
HOLEX Through hole machine tap
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0140
LOC-03 DCONMS Diameter
14 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01402105
LS Shank length
65.9 mm
Name Identifying order number
133402 3/4-16
NOF Flute count
4
OAL Overall length
110 mm
PLCD Gate diameter
17.33 mm
PLG Plug style
B - Kappa r 8°
TCL Tap chamfer length
6.348 mm
TCTR Thread tolerance class
2B
TD Thread diameter
19.05 mm
TDFR Thread diameter nominal fraction
3/4 in
THFT Thread form type
UNF
THL Thread cutting part length
25 mm
THOD Thread designation
UNF3/4-16-2B
TPI Threads per inch
16 1/in
Working process
BG - Tapping
WT Weight of item
0.14 kg
