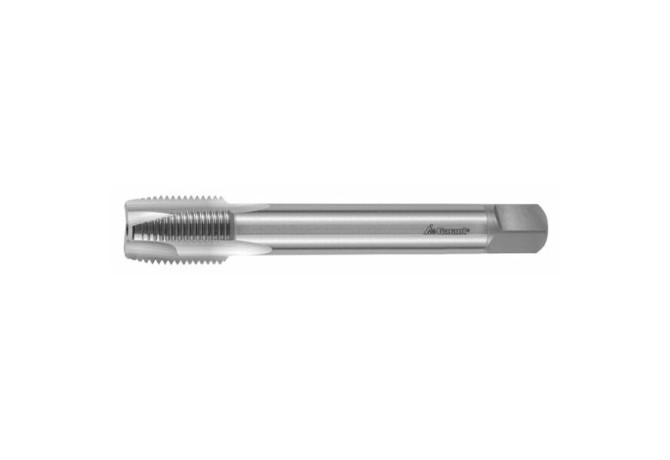

Главная Каталог продукции Toolunited 13 301-01 - Thread cutting tap with offset shank 133400 1/2-20

133400 1/2-20

133400 1/2-20 133400 1/2-20 133400 1/2-20

133400 1/2-20

Hoffmann Group
Артикул: 133400 1/2-20
В наличии
В корзину
Описание
Характеристики
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL00902105
FamilyProducts
GARANT Through hole machine tap
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0090
LOC-03 DCONMS Diameter
9 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00902105
Name Identifying order number
133400 1/2-20
NOF Flute count
3

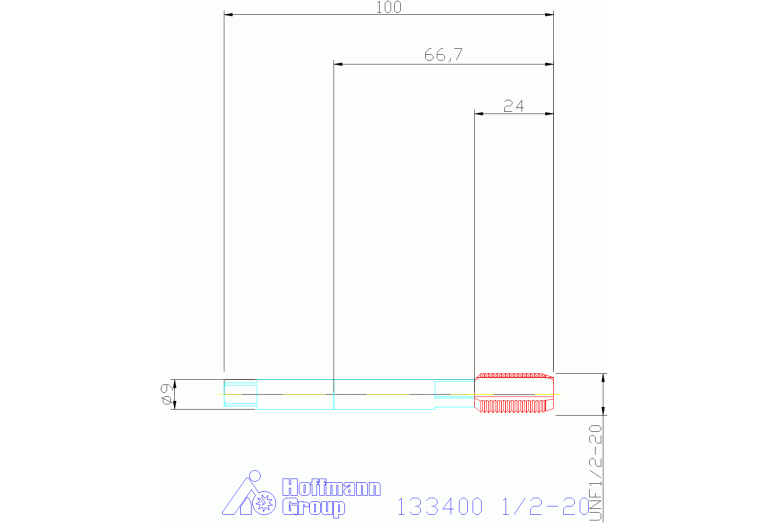

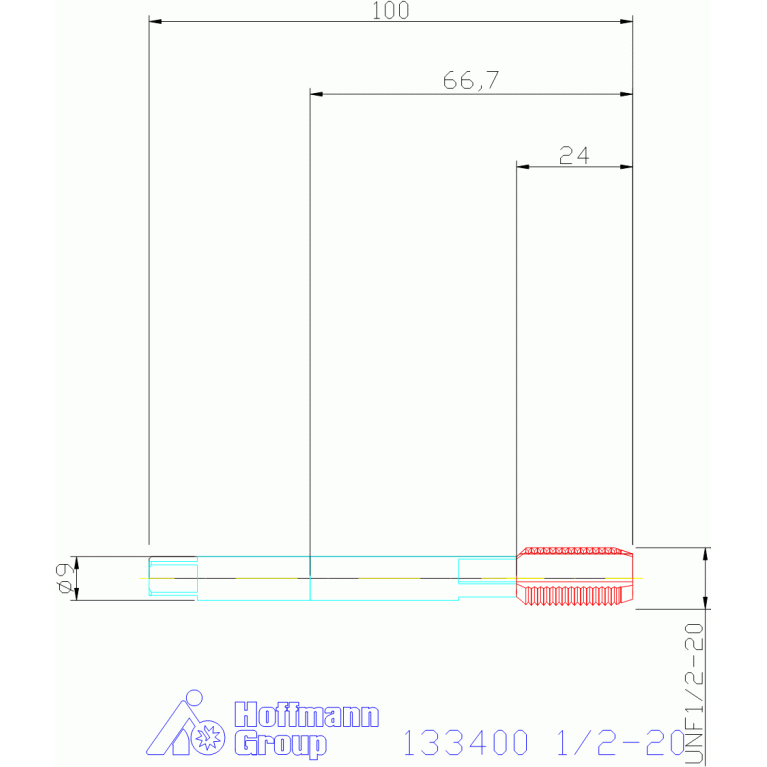

OAL Overall length
100 mm
PLCD Gate diameter
10.16 mm
PLG Plug style
B - Kappa r 8°
TCL Tap chamfer length
3.81 mm
TCTR Thread tolerance class
6H
TD Thread diameter
12.7 mm
TDFR Thread diameter nominal fraction
1/2 in
THFT Thread form type
UNF
THL Thread cutting part length
24 mm
THOD Thread designation
UNF1/2-20-6H
TPI Threads per inch
20 1/in
Working process
BG - Tapping
WT Weight of item
0.075 kg
