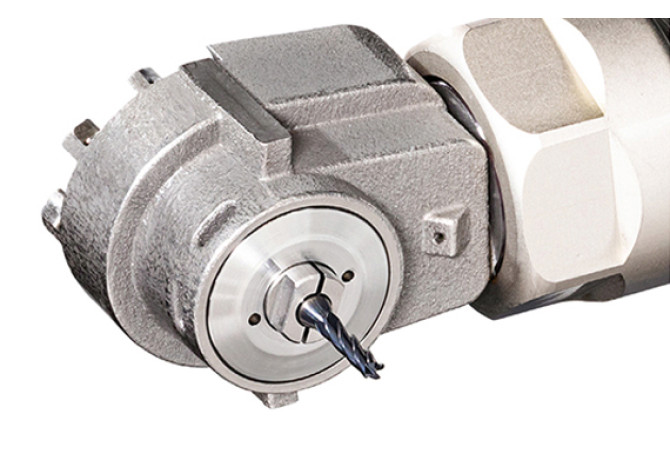

Главная Каталог продукции Toolunited 13 403-05 - Driven tool unit - 90 degree output design TJS M90 030

TJS M90 030

Артикул: 3388091

В наличии

В корзину

Описание

Характеристики

CCFOP Connection code form output side

CCONWS Connection count workpiece side

CCSWS Connection code style workpiece side

5 - Shaft in machine direction or hole in workpiece direction

CCTOP Connection code type output side

ZYL

CCUWS Connection code unit base workpiece side

1 - Metric with coolant

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IL - Ingersoll

CONARWS Connection arrangement workpiece side

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

7/1/2024

DIN

ZYL01000115

FamilyProducts

High Speed Jet Spindle M90 030

ID Technical product number

3388091

Interface codes

J6 / J41

ISYC Subclass

403-05 - Driven tool unit - 90 degree output design

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03-Connection-codes

J6 / J61 - Trennstellenkodierung, maschinenseitig

LOC-03-DIN

ZYL01000115

Name Identifying order number

TJS M90 030

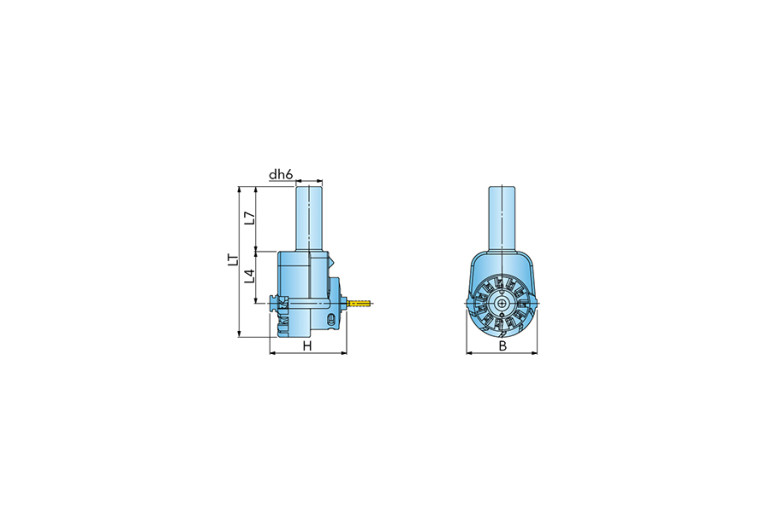

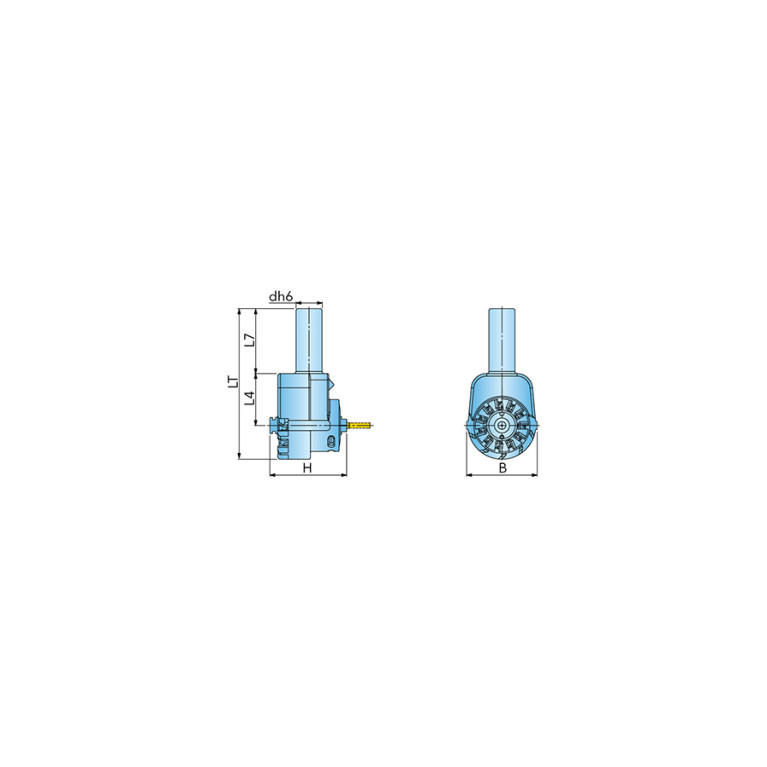

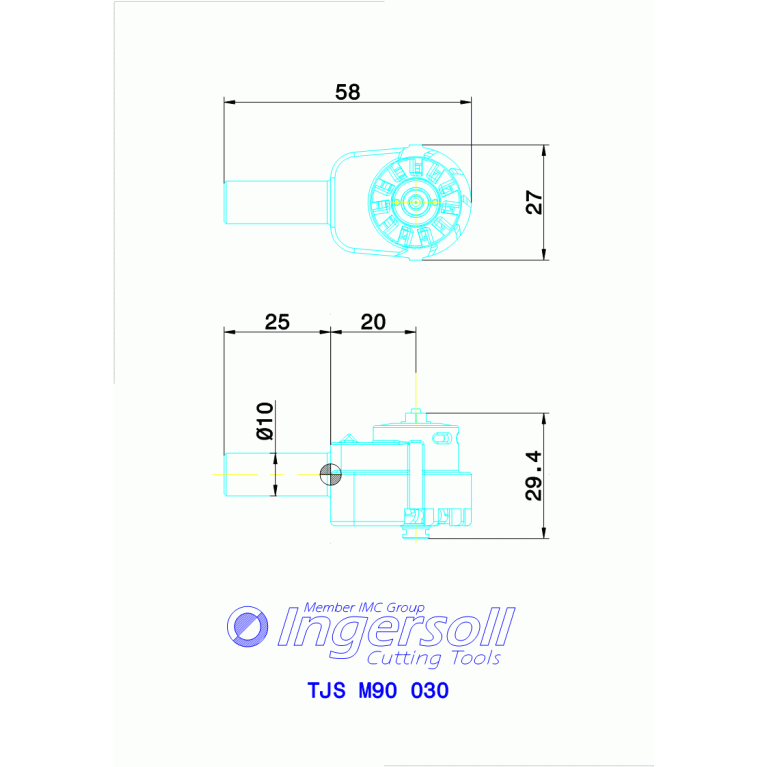

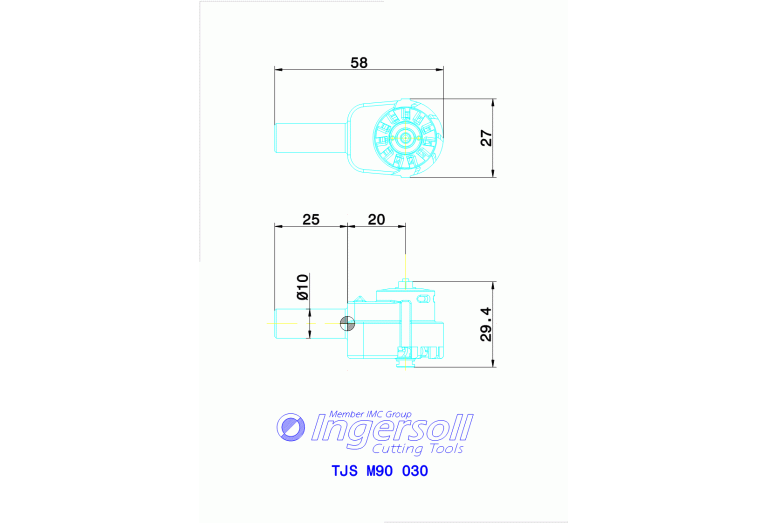

OAH Overall height

29 mm

OAL Overall length

58 mm

OAW Overall width

27 mm

Working process

No working processes available

WT Weight of item

0.2 kg
