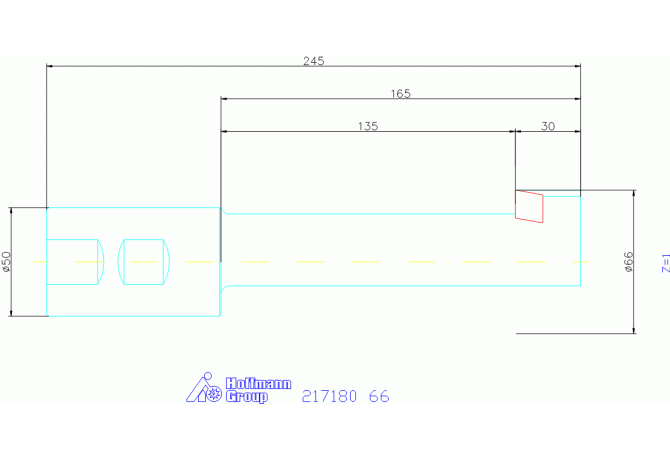

Главная Каталог продукции Toolunited 13 306-08 - Reverse countersinking tool 217180 66

217180 66

217180 66 217180 66 217180 66

217180 66

Hoffmann Group
Артикул: 217180 66
В наличии
В корзину
Описание
Характеристики
A1B Cutting edge angle major Pos. B
80 Degree
A2B Clearance angle major Pos. B
7 Degree
BI Block index
1
BLDB Tool style code Position B
3
C1B Insert thickness Pos. B
4.76 mm
CCONMS Connection count machine side
1
CEDC Cutting edge count
1
CEDC Cutting edge count step
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
D1B Corner radius Pos. B
0.4 mm
DC Cutting diameter minimum
66 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL05001315
FamilyProducts
GARANT Reverse countersinking mill 180°
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
306-08 - Reverse countersinking tool
LOC-01 BI Block index
1
LOC-01 MIID Master insert identification
CCMT120404
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
CC1204043N
LOC-03 CCFMS Connection code form
13
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL05001315
LPR Protruding length
135 mm
MIID Master insert identification
CCMT120404
Name Identifying order number
217180 66
OAL Overall length
245 mm
SIG Point angle 1st step
180 Degree
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
No working processes available
WT Weight of item
2.55 kg
