Главная Каталог продукции Toolunited 12 401-04 - Reducer, primary design EZH02516ST-100

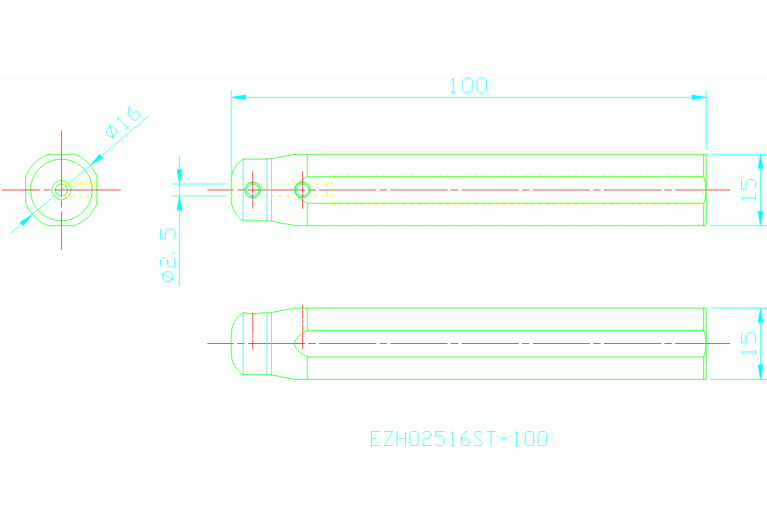

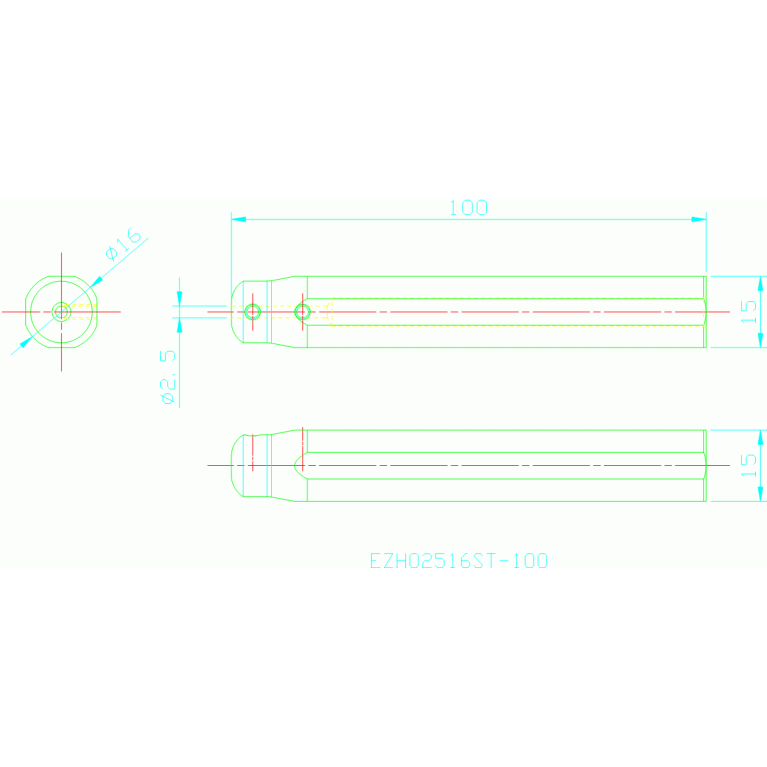

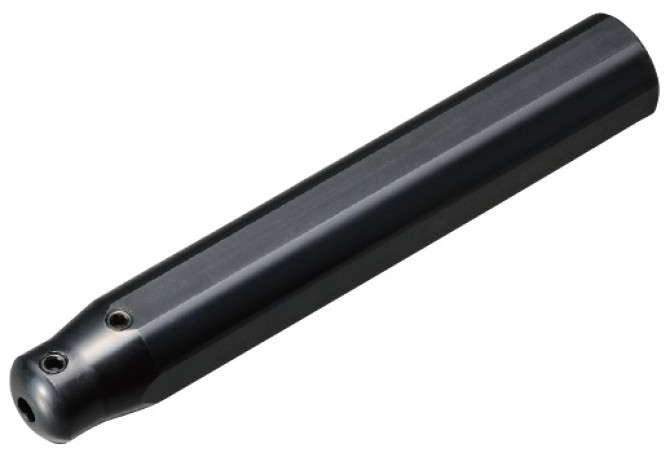

EZH02516ST-100

EZH02516ST-100 EZH02516ST-100 EZH02516ST-100 EZH02516ST-100

EZH02516ST-100

Kyocera
Артикул: THC14390
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
BD Body diameter
13 mm
BD Body diameter 2
16 mm
CCFWS Connection code form
22
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KYO - Kyocera
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0025
DCINTF Interference cutting diameter
7.45 mm
DCONWS Diameter
2.5 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/15/2022
DIN
ZYL01602205
FamilyProducts

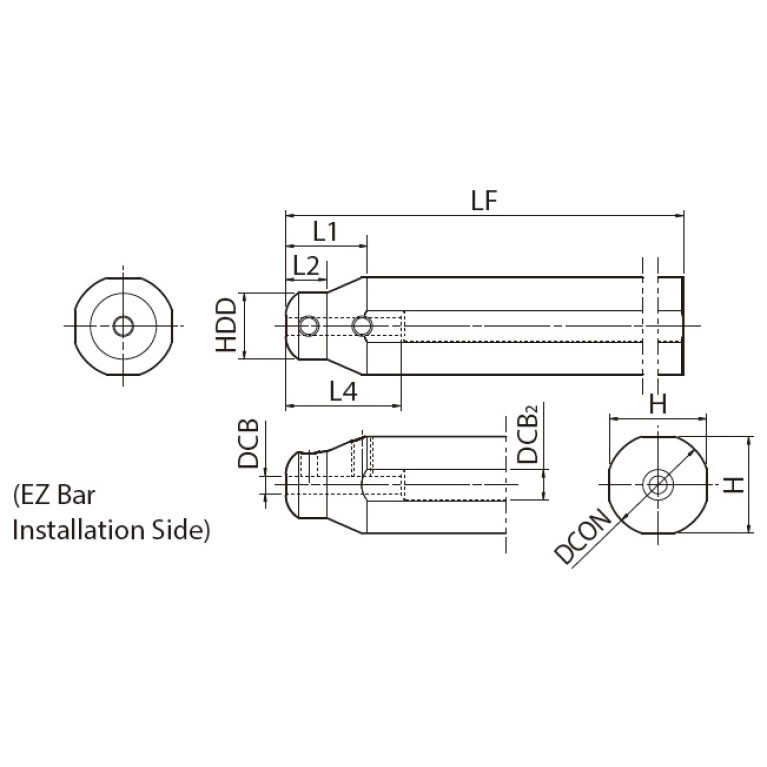

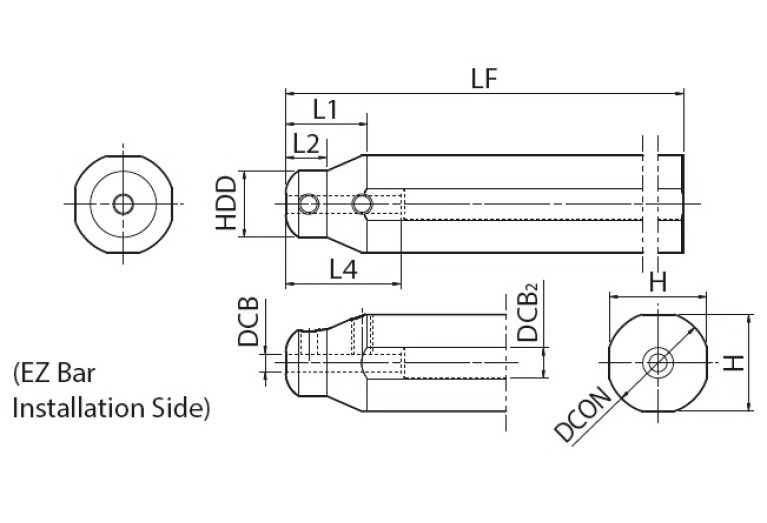

Sleeve for EZ bar
HAND Cutting direction
N - Neutral
ID Technical product number
THC14390
Interface codes
J6 /
ISYC Subclass
401-04 - Reducer, primary design
LB Body length 1
8 mm
LB Length 2
8 mm
LOC-01 CCFWS Connection code form
22
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0025
LOC-01 DCONWS Diameter
2.5 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00252205
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01602205
LPR Protruding length
19 mm
LS Shank length
81 mm
Name Identifying order number
EZH02516ST-100
OAL Overall length
100 mm
TA Taper angle
53.95 Degree
TCDCONMS ISO-tolerance class shank diameter
h7
TCMC Tool change method code
0 - manual tool change
WT Weight of item
0.127 kg
