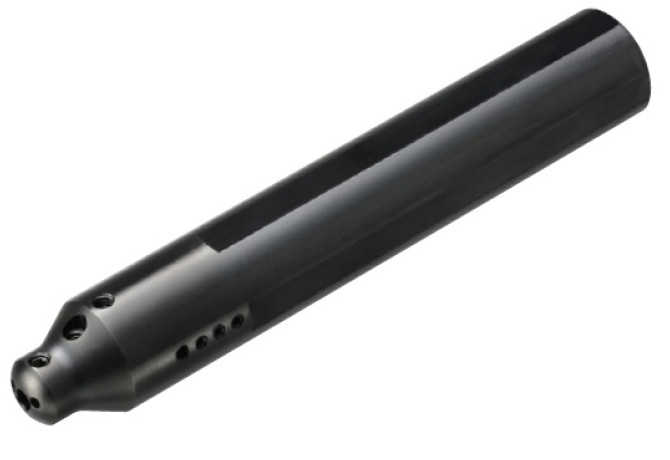

Главная Каталог продукции Toolunited 12 401-04 - Reducer, primary design EZH02020CT-120

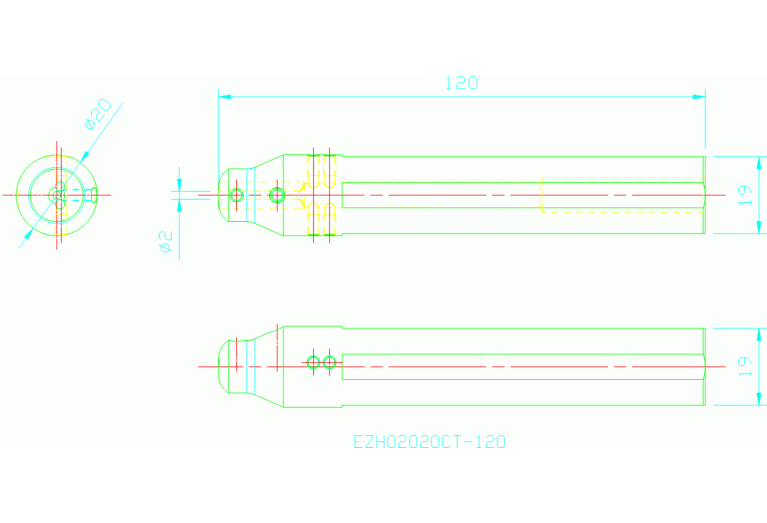

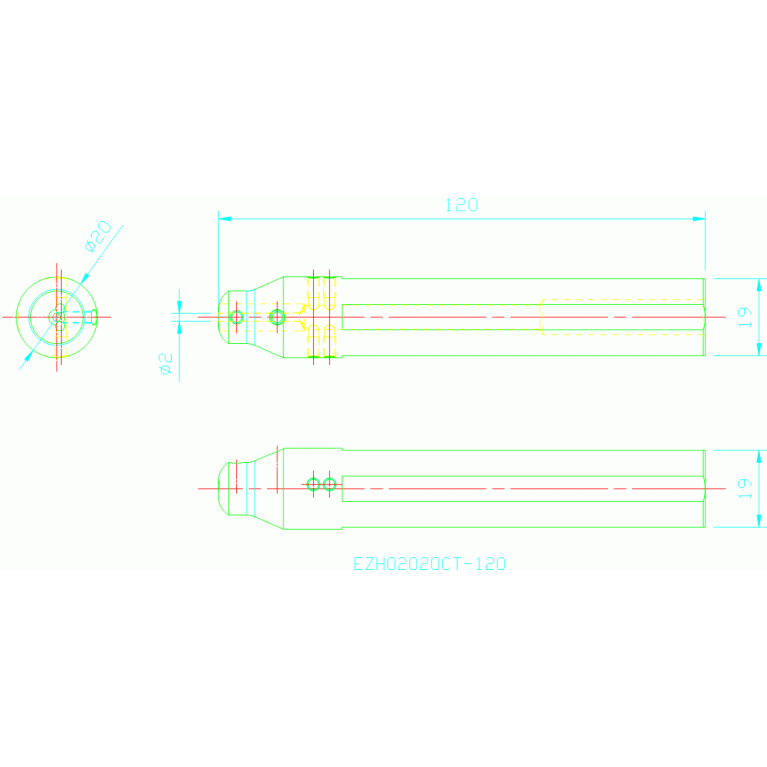

EZH02020CT-120

EZH02020CT-120 EZH02020CT-120 EZH02020CT-120 EZH02020CT-120

EZH02020CT-120

Kyocera
Артикул: THC14476
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
BD Body diameter
13 mm
BD Body diameter 2
20 mm
BHTA Body half taper angle 2
23.63 Degree
CCFWS Connection code form
22
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KYO - Kyocera
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
CZCWS Connection size code
0020
DCINTF Interference cutting diameter
7.45 mm
DCONWS Diameter
2 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/15/2022
DIN
ZYL02002215
FamilyProducts
Sleeve for EZ bar
HAND Cutting direction
N - Neutral
ID Technical product number
THC14476
Interface codes
J6 /
ISYC Subclass
401-04 - Reducer, primary design
LB Body length 1
8 mm
LB Length 2
8 mm
LOC-01 CCFWS Connection code form
22
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0020
LOC-01 DCONWS Diameter
2 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00202215
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02002215
LPR Protruding length
17 mm
LS Shank length
103 mm
Name Identifying order number
EZH02020CT-120
OAL Overall length
120 mm
TA Taper angle
53.95 Degree
TCDCONMS ISO-tolerance class shank diameter
h7
TCMC Tool change method code
0 - manual tool change
WT Weight of item
0.243 kg
