Главная Каталог продукции Toolunited 12 401-04 - Reducer, primary design EZH01719ST-120

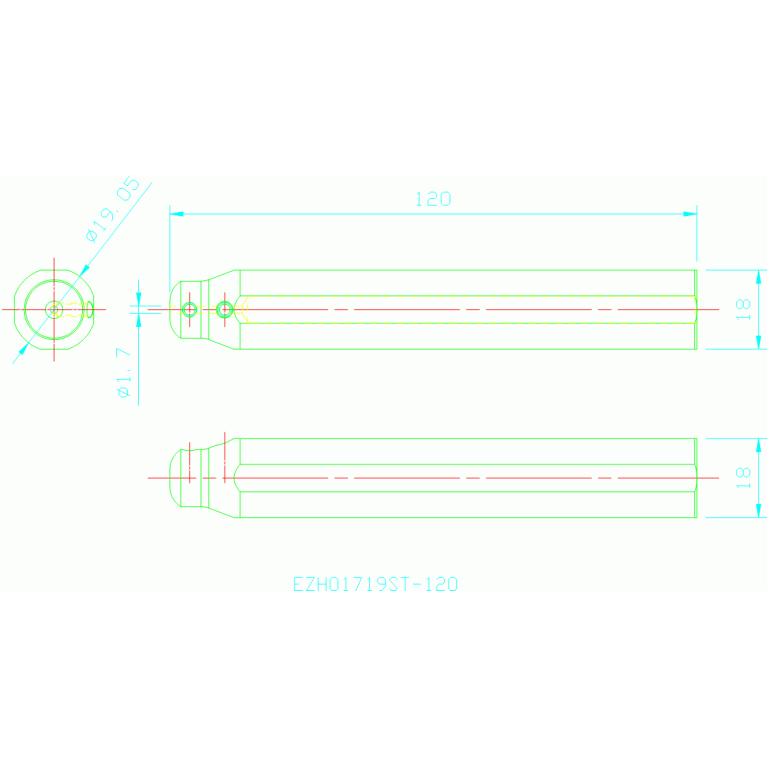

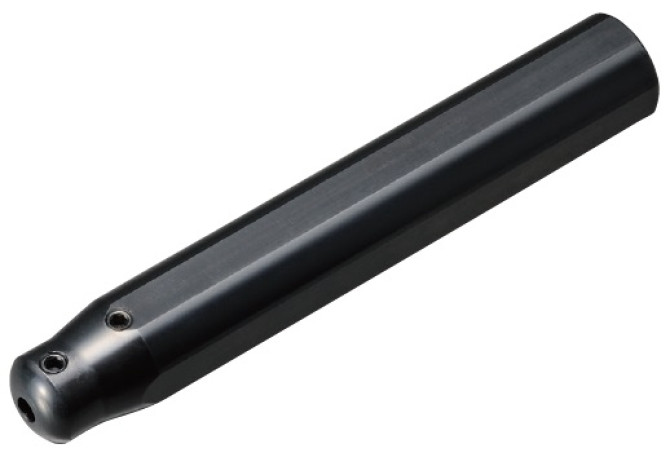

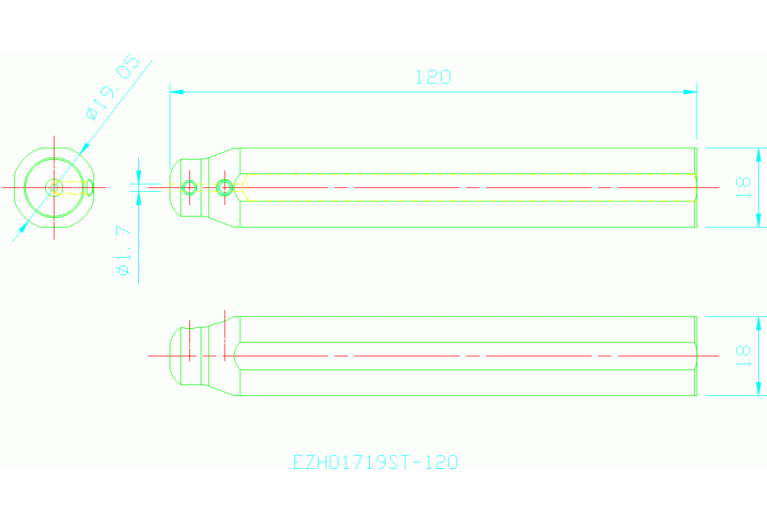

EZH01719ST-120

EZH01719ST-120 EZH01719ST-120 EZH01719ST-120 EZH01719ST-120

EZH01719ST-120

Kyocera
Артикул: THC14382
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
BD Body diameter
13 mm
BD Body diameter 2
19 mm
CCFWS Connection code form
22
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KYO - Kyocera
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0017
DCINTF Interference cutting diameter
7.45 mm
DCONWS Diameter
1.7 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/15/2022
DIN
ZYL01902205
FamilyProducts

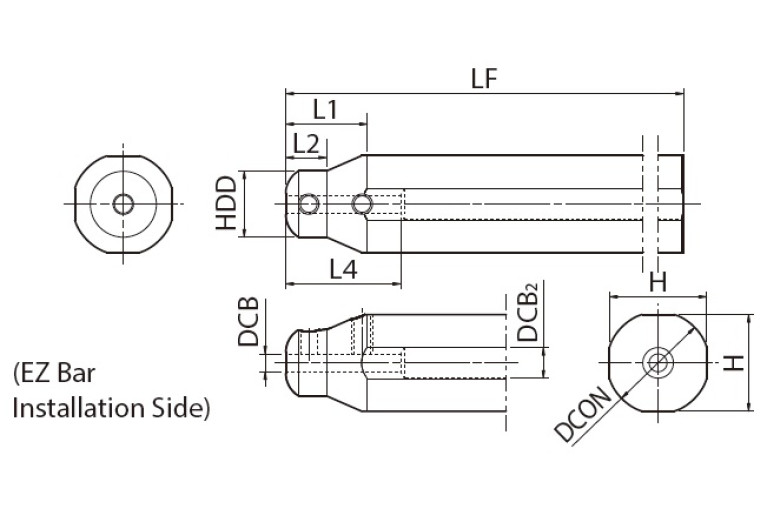

Sleeve for EZ bar
HAND Cutting direction
N - Neutral
ID Technical product number
THC14382
Interface codes
J6 /
ISYC Subclass
401-04 - Reducer, primary design
LB Body length 1
8 mm
LB Length 2
8 mm
LOC-01 CCFWS Connection code form
22
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0017
LOC-01 DCONWS Diameter
1.7 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00172205
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0190
LOC-03 DCONMS Diameter
19 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01902205
LPR Protruding length
16 mm
LS Shank length
104 mm
Name Identifying order number
EZH01719ST-120
OAL Overall length
120 mm
TA Taper angle
53.95 Degree
TCDCONMS ISO-tolerance class shank diameter
h7
TCMC Tool change method code
0 - manual tool change
WT Weight of item
0.228 kg
